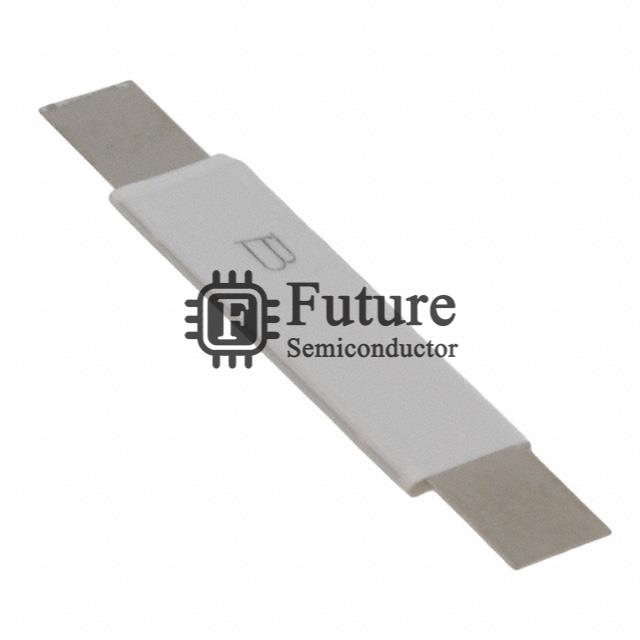

Home / Products / Circuit Protection / PTC Resettable Fuses / MF-LS180
Manufacturer Part Number | MF-LS180 |
---|---|
Future Part Number | FT-MF-LS180 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | Multifuse®, MF-LS |
MF-LS180 Status (Lifecycle) | In Stock |
Part Status | Active |
Type | Polymeric |
Voltage - Max | 24V |
Current - Max | 100A |
Current - Hold (Ih) (Max) | 1.8A |
Current - Trip (It) | 3.8A |
Time to Trip | 2.9s |
Resistance - Initial (Ri) (Min) | 40 mOhms |
Resistance - Post Trip (R1) (Max) | 120 mOhms |
Resistance - 25°C (Typ) | - |
Operating Temperature | -40°C ~ 85°C |
Ratings | - |
Mounting Type | User Defined |
Package / Case | Strap |
Size / Dimension | 0.984" L x 0.199" W (25.00mm x 5.05mm) |
Height - Seated (Max) | - |
Thickness (Max) | 0.039" (1.00mm) |
Lead Spacing | - |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
MF-LS180 Weight | Contact Us |
Replacement Part Number | MF-LS180-FT |
