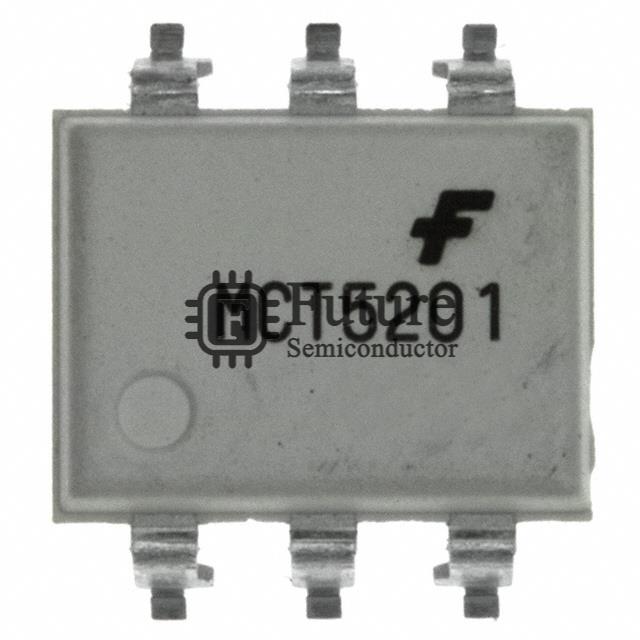

ON Semiconductor MCT5201SM

Name: MCT5201SM
Brand: ON Semiconductor
SKU: MCT5201SM
Availability: InStock
Rating: 4.8 (46 reviews)

MFG Part Number: MCT5201SM

Available Quantity: 39250 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 7.5KV TRANS W/BASE 6SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MCT5201SM.pdf

Request Quotation for MCT5201SM

Company Name

Contact Person

Phone Number

Address

Email

Message

MCT5201SM Specifications

Manufacturer Part Number	MCT5201SM
Future Part Number	FT-MCT5201SM
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
MCT5201SM Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Channels	1
Voltage - Isolation	7500Vpk
Current Transfer Ratio (Min)	120% @ 5mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	2.5µs, 16µs
Input Type	DC
Output Type	Transistor with Base
Voltage - Output (Max)	30V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.25V
Current - DC Forward (If) (Max)	50mA
Vce Saturation (Max)	400mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MCT5201SM Weight	Contact Us
Replacement Part Number	MCT5201SM-FT
