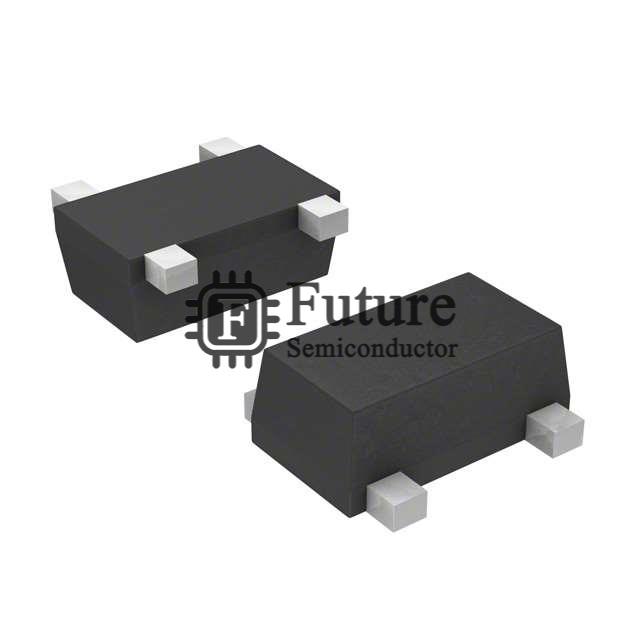

ON Semiconductor MCH4009-TL-H

Name: MCH4009-TL-H
Brand: ON Semiconductor
SKU: MCH4009-TL-H
Price: 0.117184 USD
Availability: InStock
Rating: 4.8 (512 reviews)

MFG Part Number: MCH4009-TL-H

Available Quantity: 59580 Pieces

Reference Price: USD 0.117184

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - RF TRANS NPN 3.5V 25GHZ 4MCPH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - RF

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MCH4009-TL-H.pdf

MCH4009-TL-H Specifications

Manufacturer Part Number	MCH4009-TL-H
Future Part Number	FT-MCH4009-TL-H
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
MCH4009-TL-H Status (Lifecycle)	In Stock
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	3.5V
Frequency - Transition	25GHz
Noise Figure (dB Typ @ f)	1.1dB @ 2GHz
Gain	13.5dB
Power - Max	120mW
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 5mA, 1V
Current - Collector (Ic) (Max)	40mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-343F
Supplier Device Package	4-MCPH
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MCH4009-TL-H Weight	Contact Us
Replacement Part Number	MCH4009-TL-H-FT
