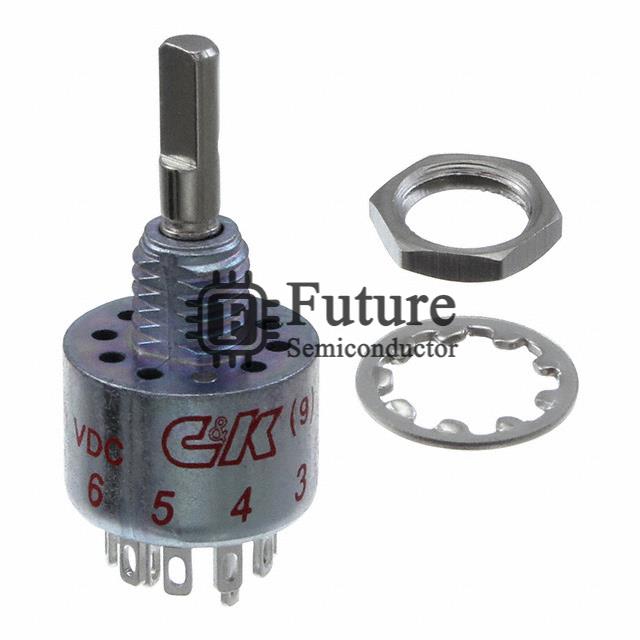

C&K MB04L1NZQD

Name: MB04L1NZQD
Brand: C&K
SKU: MB04L1NZQD
Price: 12.832 USD
Availability: InStock
Rating: 5.0 (712 reviews)

MFG Part Number: MB04L1NZQD

Available Quantity: 32250 Pieces

Reference Price: USD 12.832

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: C&K

Brief Description: M SWITCH ROTARY 4POS 250MA 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rotary Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MB04L1NZQD.pdf

Request Quotation for MB04L1NZQD

Company Name

Contact Person

Phone Number

Address

Email

Message

MB04L1NZQD Specifications

Manufacturer Part Number	MB04L1NZQD
Future Part Number	FT-MB04L1NZQD
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	M
MB04L1NZQD Status (Lifecycle)	In Stock
Part Status	Active
Number of Positions	4
Index Stops	Fixed
Number of Decks	1
Number of Poles per Deck	2
Circuit per Deck	DP4T
Contact Timing	Non-Shorting (BBM)
Current Rating	250mA (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	28V
Actuator Type	Flatted (3.17mm Dia)
Actuator Length	10.16mm
Angle of Throw	36°
Contact Material	Copper Alloy
Contact Finish	Silver
Mounting Type	Panel Mount
Termination Style	Solder Lug
Features	-
Depth Behind Panel	14.86mm
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MB04L1NZQD Weight	Contact Us
Replacement Part Number	MB04L1NZQD-FT
