Home / Products / Power Supplies - Board Mount / DC DC Converters / MAPC-104-C

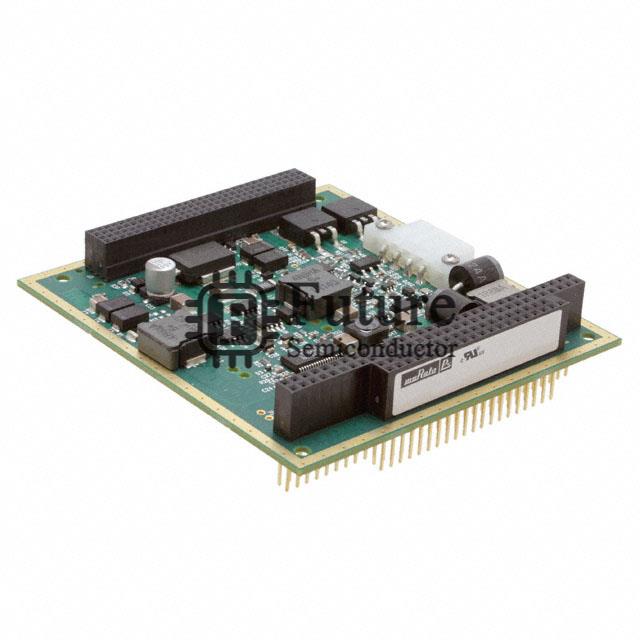

MAPC-104-C Image

Murata Power Solutions Inc. MAPC-104-C

MFG Part Number
MAPC-104-C
Available Quantity
10970 Pieces
Reference Price
USD 0
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Murata Power Solutions Inc.
Brief Description
MAPC-104 (46W) DC DC CNVRTR 3.3V 5.1V 12V 46W
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
DC DC Converters
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
MAPC-104-C.pdf
MAPC-104-C Image

Request Quotation for MAPC-104-C

Company Name
Contact Person
Phone Number
Address
Email
Message

MAPC-104-C Specifications

Manufacturer Part Number MAPC-104-C
Future Part Number FT-MAPC-104-C
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series MAPC-104 (46W)
MAPC-104-C Status (Lifecycle) In Stock
Part Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 3
Voltage - Input (Min) 9V
Voltage - Input (Max) 32V
Voltage - Output 1 3.3V
Voltage - Output 2 5.1V
Voltage - Output 3 12V
Voltage - Output 4 -
Current - Output (Max) 6A, 6.3A, 100mA
Power (Watts) 46W
Voltage - Isolation -
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Operating Temperature -40°C ~ 85°C
Efficiency 92.5%
Mounting Type Through Hole
Package / Case Module
Size / Dimension 3.78" L x 3.55" W x 0.69" H (95.9mm x 90.2mm x 17.5mm)
Supplier Device Package -
Control Features -
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
MAPC-104-C Weight Contact Us
Replacement Part Number MAPC-104-C-FT
