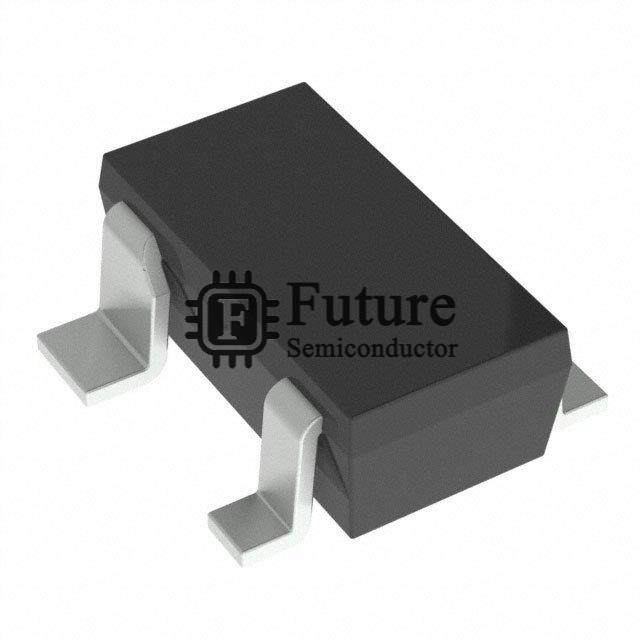

Panasonic Electronic Components MA4X159AGL

Name: MA4X159AGL
Brand: Panasonic Electronic Components
SKU: MA4X159AGL
Availability: InStock
Rating: 4.9 (294 reviews)

MFG Part Number: MA4X159AGL

Available Quantity: 30640 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electronic Components

Brief Description: - DIODE ARRAY GP 80V 100MA MINI4

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MA4X159AGL.pdf

Request Quotation for MA4X159AGL

Company Name

Contact Person

Phone Number

Address

Email

Message

MA4X159AGL Specifications

Manufacturer Part Number	MA4X159AGL
Future Part Number	FT-MA4X159AGL
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
MA4X159AGL Status (Lifecycle)	In Stock
Part Status	Obsolete
Diode Configuration	2 Independent
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	100mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	100nA @ 75V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	SC-61AB
Supplier Device Package	Mini4-G3
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MA4X159AGL Weight	Contact Us
Replacement Part Number	MA4X159AGL-FT
