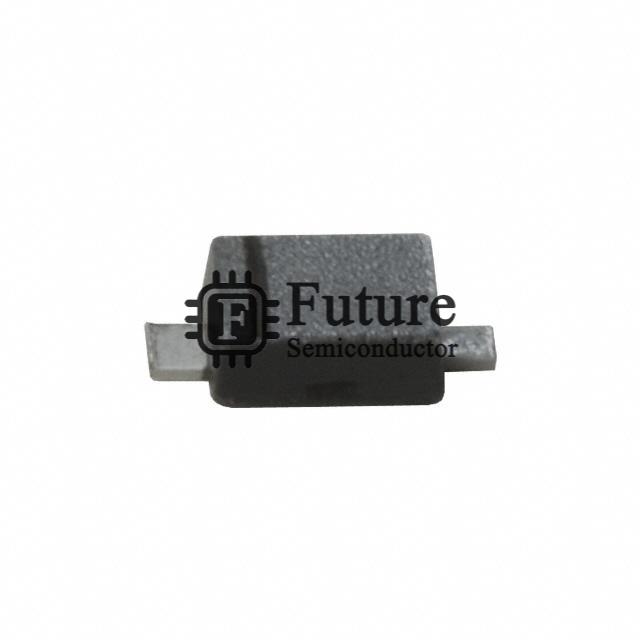

Panasonic Electronic Components MA2J7290GL

Name: MA2J7290GL
Brand: Panasonic Electronic Components
SKU: MA2J7290GL
Availability: InStock
Rating: 4.6 (631 reviews)

MFG Part Number: MA2J7290GL

Available Quantity: 77040 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electronic Components

Brief Description: - DIODE SCHOTTKY 30V 200MA SMINI2

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MA2J7290GL.pdf

Request Quotation for MA2J7290GL

Company Name

Contact Person

Phone Number

Address

Email

Message

MA2J7290GL Specifications

Manufacturer Part Number	MA2J7290GL
Future Part Number	FT-MA2J7290GL
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
MA2J7290GL Status (Lifecycle)	In Stock
Part Status	Obsolete
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	30pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SMini2-F3
Operating Temperature - Junction	150°C (Max)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MA2J7290GL Weight	Contact Us
Replacement Part Number	MA2J7290GL-FT
