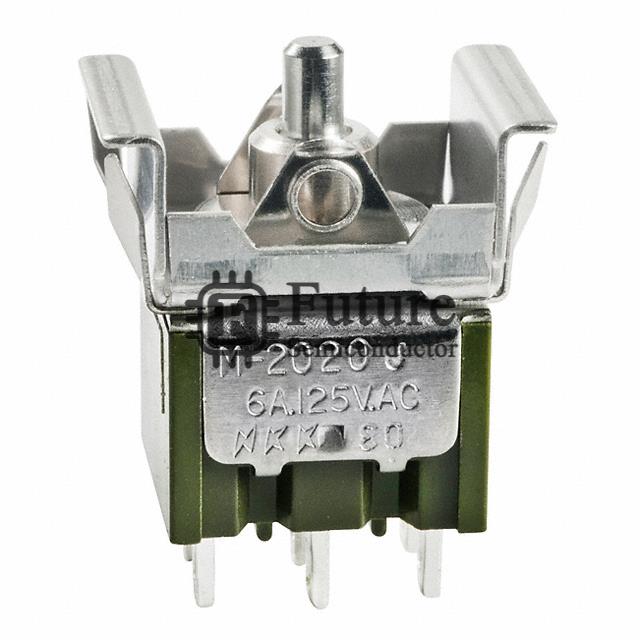

NKK Switches M2024TJW01

Name: M2024TJW01
Brand: NKK Switches
SKU: M2024TJW01
Price: 5.616 USD
Availability: InStock
Rating: 4.6 (245 reviews)

MFG Part Number: M2024TJW01

Available Quantity: 71510 Pieces

Reference Price: USD 5.616

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: M SWITCH ROCKER SP3T 6A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rocker Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: M2024TJW01.pdf

M2024TJW01 Specifications

Manufacturer Part Number	M2024TJW01
Future Part Number	FT-M2024TJW01
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	M
M2024TJW01 Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SP3T
Switch Function	On-On-On
Current Rating	6A (AC), 3A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Actuator Arm, Cap Required
Color - Actuator/Cap	-
Actuator Marking	Varies by Cap
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount, Snap-In
Termination Style	Solder Lug
Ingress Protection	-
Features	Jumper needed to achieve triple throw
Panel Cutout Dimensions	Rectangular - 15.90mm x 13.10mm
Operating Temperature	-30°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
M2024TJW01 Weight	Contact Us
Replacement Part Number	M2024TJW01-FT
