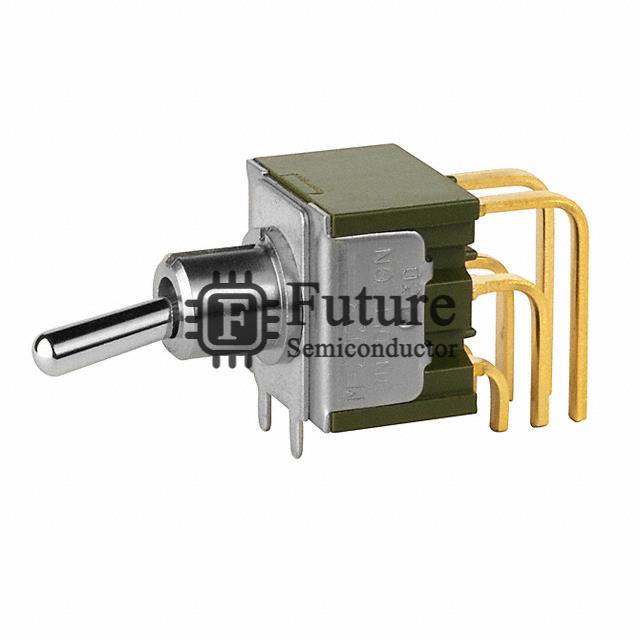

M2023S3A2G45 Image

NKK Switches M2023S3A2G45

MFG Part Number
M2023S3A2G45
Available Quantity
41710 Pieces
Reference Price
USD 0
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
M SWITCH TOGGLE DPDT 0.4VA 28V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Toggle Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
M2023S3A2G45.pdf
M2023S3A2G45 Image

Request Quotation for M2023S3A2G45

Company Name
Contact Person
Phone Number
Address
Email
Message

M2023S3A2G45 Specifications

Manufacturer Part Number M2023S3A2G45
Future Part Number FT-M2023S3A2G45
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series M
M2023S3A2G45 Status (Lifecycle) In Stock
Part Status Active
Circuit DPDT
Switch Function On-Off-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Standard Round
Actuator Length 8.28mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Mounting Type Through Hole, Right Angle, Vertical
Termination Style PC Pin
Panel Cutout Dimensions -
Bushing Thread Unthreaded
Ingress Protection -
Features Epoxy Sealed Terminals
Operating Temperature -30°C ~ 85°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
M2023S3A2G45 Weight Contact Us
Replacement Part Number M2023S3A2G45-FT
