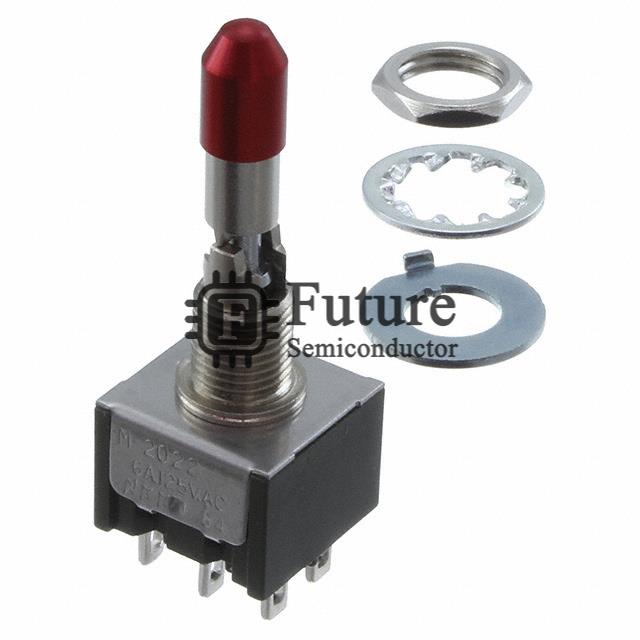

NKK Switches M2022LL1W01-C

Name: M2022LL1W01-C
Brand: NKK Switches
SKU: M2022LL1W01-C
Price: 5.976 USD
Availability: InStock
Rating: 4.6 (402 reviews)

MFG Part Number: M2022LL1W01-C

Available Quantity: 82480 Pieces

Reference Price: USD 5.976

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: M SWITCH TOGGLE DPDT 6A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Toggle Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: M2022LL1W01-C.pdf

Request Quotation for M2022LL1W01-C

Company Name

Contact Person

Phone Number

Address

Email

Message

M2022LL1W01-C Specifications

Manufacturer Part Number	M2022LL1W01-C
Future Part Number	FT-M2022LL1W01-C
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	M
M2022LL1W01-C Status (Lifecycle)	In Stock
Part Status	Active
Circuit	DPDT
Switch Function	On-On
Current Rating	6A (AC), 4A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Locking Lever
Actuator Length	16.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular - 6.50mm Dia
Bushing Thread	1/4-40
Ingress Protection	-
Features	Red Cap
Operating Temperature	-30°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
M2022LL1W01-C Weight	Contact Us
Replacement Part Number	M2022LL1W01-C-FT
