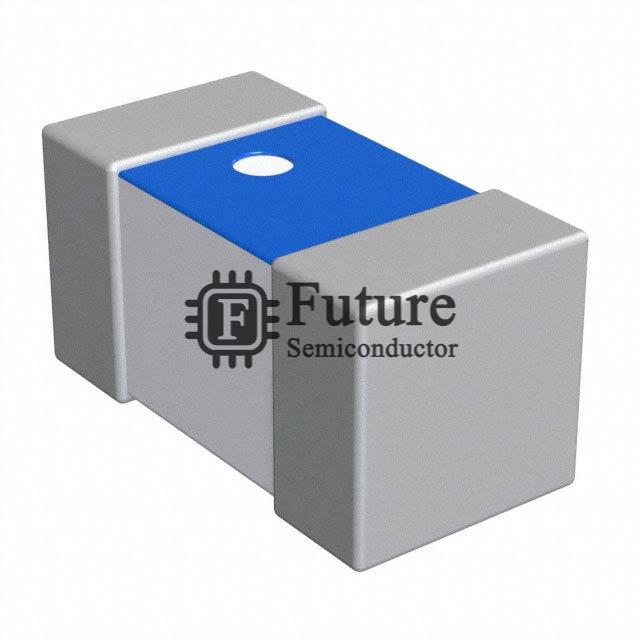

Murata Electronics North America LQP03PN3N3C02D

Name: LQP03PN3N3C02D
Brand: Murata Electronics North America
SKU: LQP03PN3N3C02D
Price: 0.01664 USD
Availability: InStock
Rating: 4.7 (129 reviews)

MFG Part Number: LQP03PN3N3C02D

Available Quantity: 26040 Pieces

Reference Price: USD 0.01664

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Murata Electronics North America

Brief Description: LQP03 FIXED Inductors 3.3NH 1.2A 80 MOHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LQP03PN3N3C02D.pdf

Request Quotation for LQP03PN3N3C02D

Company Name

Contact Person

Phone Number

Address

Email

Message

LQP03PN3N3C02D Specifications

Manufacturer Part Number	LQP03PN3N3C02D
Future Part Number	FT-LQP03PN3N3C02D
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	LQP03
LQP03PN3N3C02D Status (Lifecycle)	In Stock
Part Status	Active
Type	Thin Film
Material - Core	Non-Magnetic
Inductance	3.3nH
Tolerance	±0.2nH
Current Rating	1.2A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	80 mOhm Max
Q @ Freq	10 @ 500MHz
Frequency - Self Resonant	5.5GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	500MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LQP03PN3N3C02D Weight	Contact Us
Replacement Part Number	LQP03PN3N3C02D-FT
