Power Integrations LQA30A300C

Name: LQA30A300C
Brand: Power Integrations
SKU: LQA30A300C
Price: 2.808 USD
Availability: InStock
Rating: 4.8 (566 reviews)

MFG Part Number: LQA30A300C

Available Quantity: 39220 Pieces

Reference Price: USD 2.808

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Power Integrations

Brief Description: Qspeed™ DIODE ARRAY SCHOTTKY 300V TO247

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LQA30A300C.pdf

LQA30A300C Specifications

Manufacturer Part Number	LQA30A300C
Future Part Number	FT-LQA30A300C
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Qspeed™
LQA30A300C Status (Lifecycle)	In Stock
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	1.9V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	13ns
Current - Reverse Leakage @ Vr	25µA @ 300V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Through Hole

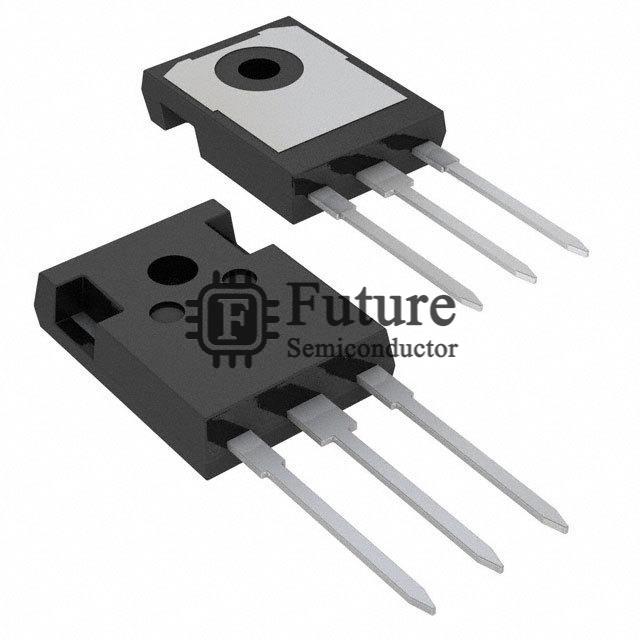

Package / Case	TO-247-3
Supplier Device Package	TO-247AD
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LQA30A300C Weight	Contact Us
Replacement Part Number	LQA30A300C-FT
