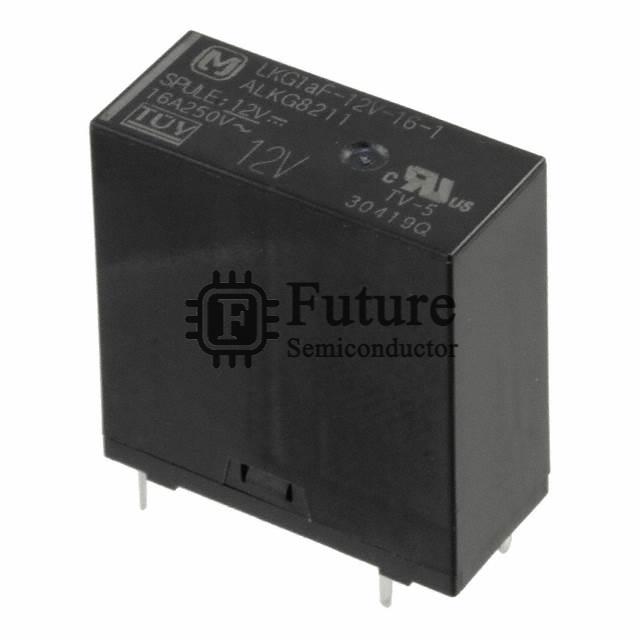

Panasonic Electric Works LKG1AF-12V-16-1

Name: LKG1AF-12V-16-1
Brand: Panasonic Electric Works
SKU: LKG1AF-12V-16-1
Price: 1.4256 USD
Availability: InStock
Rating: 4.8 (660 reviews)

MFG Part Number: LKG1AF-12V-16-1

Available Quantity: 11230 Pieces

Reference Price: USD 1.4256

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: LK-G RELAY GEN PURPOSE SPST 16A 12V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LKG1AF-12V-16-1.pdf

Request Quotation for LKG1AF-12V-16-1

Company Name

Contact Person

Phone Number

Address

Email

Message

LKG1AF-12V-16-1 Specifications

Manufacturer Part Number	LKG1AF-12V-16-1
Future Part Number	FT-LKG1AF-12V-16-1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	LK-G
LKG1AF-12V-16-1 Status (Lifecycle)	In Stock
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	16A
Switching Voltage	277VAC - Max
Coil Current	44.2mA
Coil Type	Non Latching
Features	Sealed - Flux Protection
Termination Style	PC Pin
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	15ms
Release Time	20ms
Operating Temperature	-40°C ~ 70°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LKG1AF-12V-16-1 Weight	Contact Us
Replacement Part Number	LKG1AF-12V-16-1-FT
