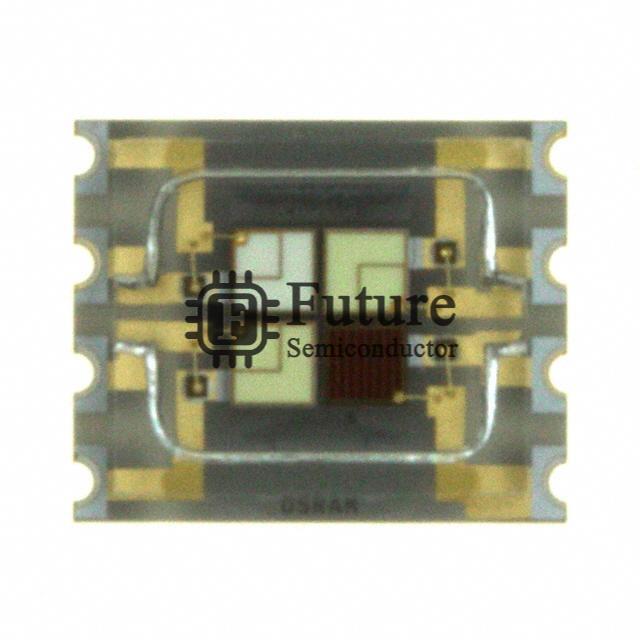

OSRAM Opto Semiconductors Inc. LE ATB S2W-JW-1+LBMB-24+G

Name: LE ATB S2W-JW-1+LBMB-24+G
Brand: OSRAM Opto Semiconductors Inc.
SKU: LE ATB S2W-JW-1+LBMB-24+G
Availability: InStock
Rating: 4.6 (176 reviews)

MFG Part Number: LE ATB S2W-JW-1+LBMB-24+G

Available Quantity: 13490 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: OSRAM Opto Semiconductors Inc.

Brief Description: OSRAM OSTAR LED OSTAR AMB/GRN/BLU SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: LED Lighting - Color

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LE ATB S2W-JW-1+LBMB-24+G.pdf

Request Quotation for LE ATB S2W-JW-1+LBMB-24+G

Company Name

Contact Person

Phone Number

Address

Email

Message

LE ATB S2W-JW-1+LBMB-24+G Specifications

Manufacturer Part Number	LE ATB S2W-JW-1+LBMB-24+G
Future Part Number	FT-LE ATB S2W-JW-1+LBMB-24+G
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	OSRAM OSTAR
LE ATB S2W-JW-1+LBMB-24+G Status (Lifecycle)	In Stock
Part Status	Obsolete
Color	Amber, Green, Blue
Wavelength	619nm Amber, 524nm Green, 464nm Blue
Current - Test	700mA Amber, 700mA Green, 700mA Blue
Voltage - Forward (Vf) (Typ)	2.5V Amber, 3.6V Green, 3.6V Blue
Lumens/Watt @ Current - Test	33 lm/W Amber, 83 lm/W Green, 13 lm/W Blue
Current - Max	1A Amber, 1A Green, 1A Blue
Flux @ Current/Temperature - Test	58 lm Amber, 210 lm Green, 32 lm Blue
Temperature - Test	25°C
Viewing Angle	120°
Mounting Type	Surface Mount
Package / Case	8-SMD Module
Supplier Device Package	SMD
Size / Dimension	0.184" L x 0.228" W (4.68mm x 5.80mm)
Height - Seated (Max)	0.048" (1.23mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LE ATB S2W-JW-1+LBMB-24+G Weight	Contact Us
Replacement Part Number	LE ATB S2W-JW-1+LBMB-24+G-FT
