Home / Products / Switches / Pushbutton Switches / LB15RKG01-5C05-JB

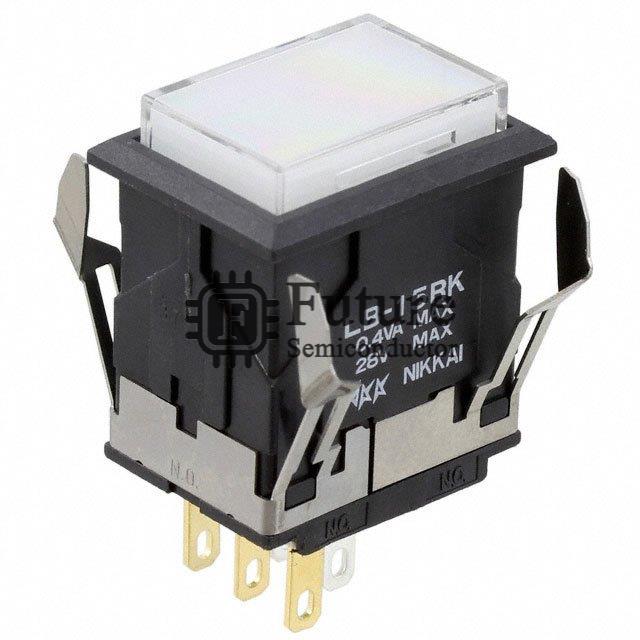

NKK Switches LB15RKG01-5C05-JB
- MFG Part Number
- LB15RKG01-5C05-JB
- Available Quantity
- 55200 Pieces
- Reference Price
- USD 16.336
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- NKK Switches
- Brief Description
- LB SWITCH PUSHBUTTON SPDT 0.4VA 28V
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Pushbutton Switches
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- LB15RKG01-5C05-JB.pdf
LB15RKG01-5C05-JB Specifications
| Manufacturer Part Number | LB15RKG01-5C05-JB |
|---|---|
| Future Part Number | FT-LB15RKG01-5C05-JB |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | LB |
| LB15RKG01-5C05-JB Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Standard, Illuminated |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating | 0.4VA (AC/DC) |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Actuator Type | Rectangular, Button |
| Color - Actuator/Cap | Clear (White Filter/Diffuser) |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 5 VDC |
| Mounting Type | Panel Mount, Snap-In |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | Rectangular - 22.40mm x 16.20mm |
| Operating Temperature | -25°C ~ 50°C |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| LB15RKG01-5C05-JB Weight | Contact Us |
| Replacement Part Number | LB15RKG01-5C05-JB-FT |
