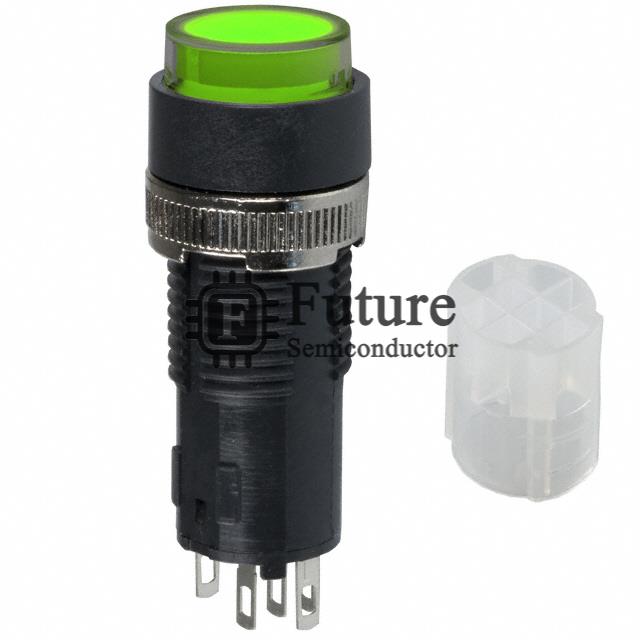

NKK Switches KB15CKW01-5F-JF

Name: KB15CKW01-5F-JF
Brand: NKK Switches
SKU: KB15CKW01-5F-JF
Price: 7.184 USD
Availability: InStock
Rating: 4.5 (217 reviews)

MFG Part Number: KB15CKW01-5F-JF

Available Quantity: 39260 Pieces

Reference Price: USD 7.184

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: KB SWITCH PUSHBUTTON SPDT 1A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Pushbutton Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: KB15CKW01-5F-JF.pdf

Request Quotation for KB15CKW01-5F-JF

Company Name

Contact Person

Phone Number

Address

Email

Message

KB15CKW01-5F-JF Specifications

Manufacturer Part Number	KB15CKW01-5F-JF
Future Part Number	FT-KB15CKW01-5F-JF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	KB
KB15CKW01-5F-JF Status (Lifecycle)	In Stock
Part Status	Active
Type	Standard, Illuminated
Circuit	SPDT
Switch Function	On-Mom
Current Rating	1A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Round, Button
Color - Actuator/Cap	Clear (Green Filter/Diffuser)
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mounting Type	Panel Mount, Front
Termination Style	Solder Lug
Ingress Protection	-
Features	-
Panel Cutout Dimensions	Circular - 12.30mm Dia
Operating Temperature	-25°C ~ 50°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
KB15CKW01-5F-JF Weight	Contact Us
Replacement Part Number	KB15CKW01-5F-JF-FT
