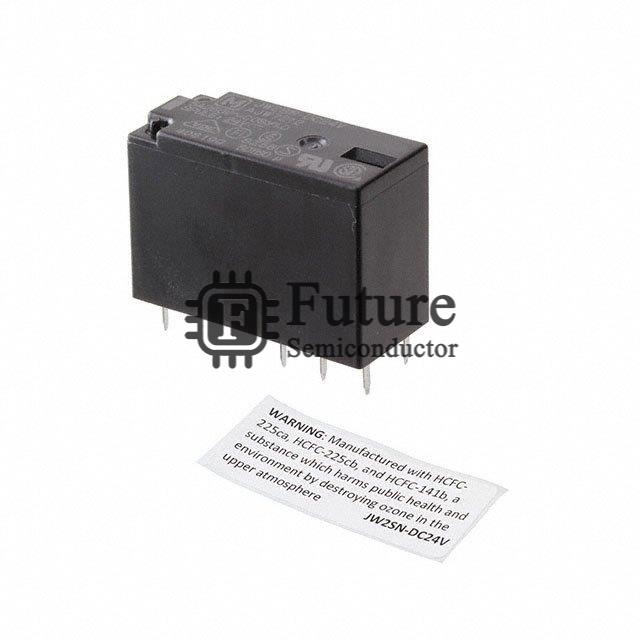

Panasonic Electric Works JW2SN-DC24V

Name: JW2SN-DC24V
Brand: Panasonic Electric Works
SKU: JW2SN-DC24V
Price: 3.152 USD
Availability: InStock
Rating: 4.6 (301 reviews)

MFG Part Number: JW2SN-DC24V

Available Quantity: 56780 Pieces

Reference Price: USD 3.152

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: JW RELAY GEN PURPOSE DPDT 5A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JW2SN-DC24V.pdf

Request Quotation for JW2SN-DC24V

Company Name

Contact Person

Phone Number

Address

Email

Message

JW2SN-DC24V Specifications

Manufacturer Part Number	JW2SN-DC24V
Future Part Number	FT-JW2SN-DC24V
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JW
JW2SN-DC24V Status (Lifecycle)	In Stock
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	5A
Switching Voltage	250VAC, 30VDC - Max
Coil Current	22.0mA
Coil Type	Non Latching
Features	Sealed - Fully
Termination Style	PC Pin
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	15ms
Release Time	5ms
Operating Temperature	-40°C ~ 60°C
Contact Material	Silver Nickel (AgNi)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JW2SN-DC24V Weight	Contact Us
Replacement Part Number	JW2SN-DC24V-FT
