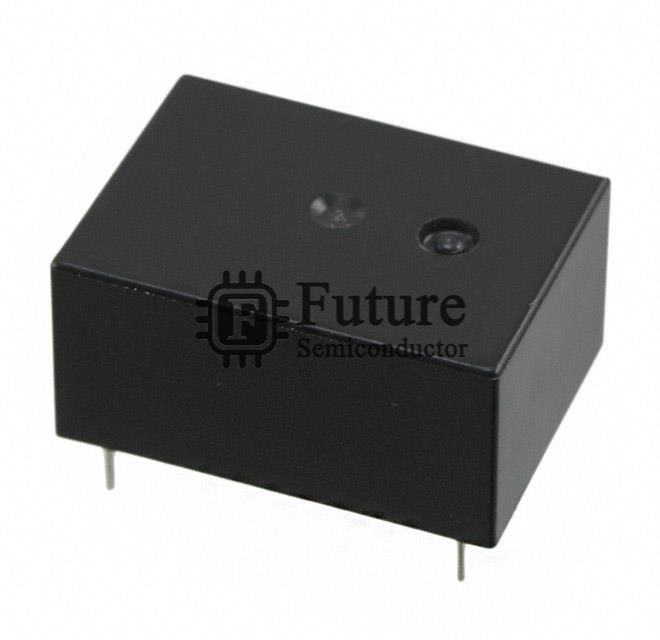

Panasonic Electric Works JVN1AF-48V-F

Name: JVN1AF-48V-F
Brand: Panasonic Electric Works
SKU: JVN1AF-48V-F
Price: 4.536 USD
Availability: InStock
Rating: 4.8 (769 reviews)

MFG Part Number: JVN1AF-48V-F

Available Quantity: 49050 Pieces

Reference Price: USD 4.536

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: JV-N RELAY GEN PURPOSE SPST 16A 48V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JVN1AF-48V-F.pdf

Request Quotation for JVN1AF-48V-F

Company Name

Contact Person

Phone Number

Address

Email

Message

JVN1AF-48V-F Specifications

Manufacturer Part Number	JVN1AF-48V-F
Future Part Number	FT-JVN1AF-48V-F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JV-N
JVN1AF-48V-F Status (Lifecycle)	In Stock
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	48VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	16A
Switching Voltage	277VAC, 30VDC - Max
Coil Current	4.2mA
Coil Type	Non Latching
Features	Sealed - Flux Protection
Termination Style	PC Pin
Must Operate Voltage	36 VDC
Must Release Voltage	2.4 VDC
Operate Time	12ms
Release Time	5ms
Operating Temperature	-40°C ~ 70°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JVN1AF-48V-F Weight	Contact Us
Replacement Part Number	JVN1AF-48V-F-FT
