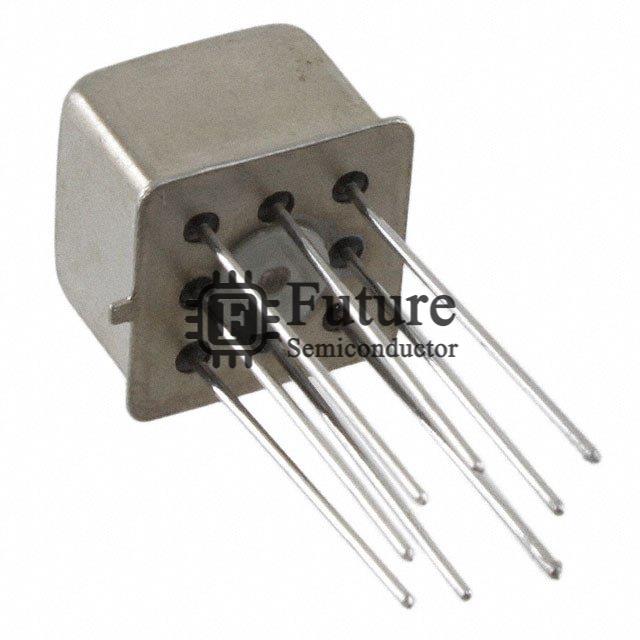

TE Connectivity Aerospace, Defense and Marine JMGACDD-26MW

Name: JMGACDD-26MW
Brand: TE Connectivity Aerospace, Defense and Marine
SKU: JMGACDD-26MW
Price: 100.744 USD
Availability: InStock
Rating: 4.7 (754 reviews)

MFG Part Number: JMGACDD-26MW

Available Quantity: 58930 Pieces

Reference Price: USD 100.744

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Brief Description: Military, MIL-R-39016/19, MGA, CII RELAY GEN PURPOS DPDT 1A 26.5VDC

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Signal Relays, Up to 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JMGACDD-26MW.pdf

Request Quotation for JMGACDD-26MW

Company Name

Contact Person

Phone Number

Address

Email

Message

JMGACDD-26MW Specifications

Manufacturer Part Number	JMGACDD-26MW
Future Part Number	FT-JMGACDD-26MW
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-R-39016/19, MGA, CII
JMGACDD-26MW Status (Lifecycle)	In Stock
Part Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	17.0mA
Coil Voltage	26.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	28VDC - Nom
Turn On Voltage (Max)	14.8 VDC
Turn Off Voltage (Min)	1.8 VDC
Operate Time	2ms
Release Time	4ms
Features	Sealed - Hermetically
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature	-65°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JMGACDD-26MW Weight	Contact Us
Replacement Part Number	JMGACDD-26MW-FT
