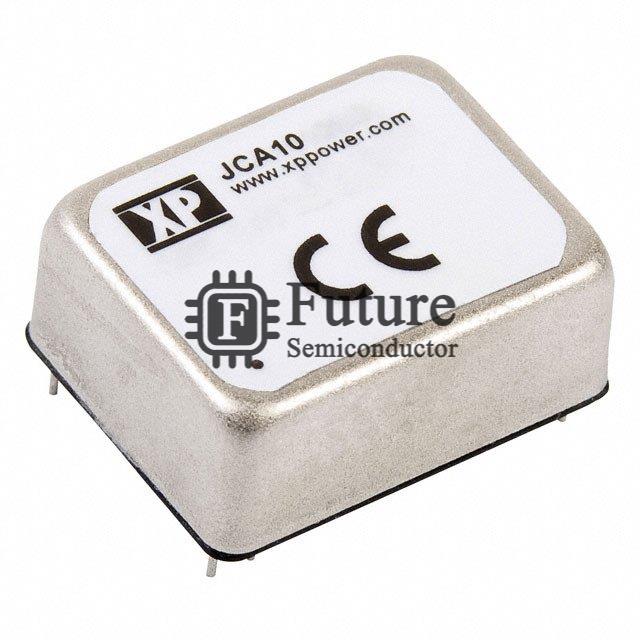

XP Power JCA1005D02

Name: JCA1005D02
Brand: XP Power
SKU: JCA1005D02
Price: 29.6 USD
Availability: InStock
Rating: 4.8 (36 reviews)

MFG Part Number: JCA1005D02

Available Quantity: 62000 Pieces

Reference Price: USD 29.6

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: XP Power

Brief Description: JCA (10W) DC DC CONVERTER /-12V 10W

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JCA1005D02.pdf

Request Quotation for JCA1005D02

Company Name

Contact Person

Phone Number

Address

Email

Message

JCA1005D02 Specifications

Manufacturer Part Number	JCA1005D02
Future Part Number	FT-JCA1005D02
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JCA (10W)
JCA1005D02 Status (Lifecycle)	In Stock
Part Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	420mA, 420mA
Power (Watts)	10W
Voltage - Isolation	1.5kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 100°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JCA1005D02 Weight	Contact Us
Replacement Part Number	JCA1005D02-FT
