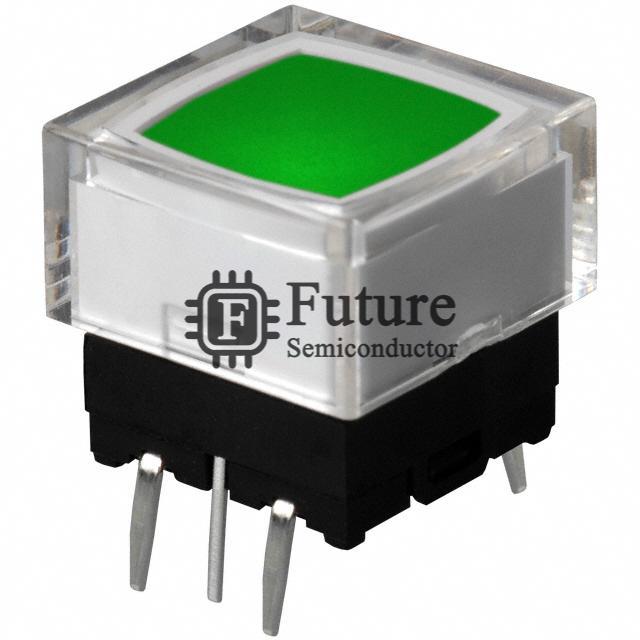

NKK Switches JB15LPF-JB

Name: JB15LPF-JB
Brand: NKK Switches
SKU: JB15LPF-JB
Price: 3.552 USD
Availability: InStock
Rating: 4.7 (204 reviews)

MFG Part Number: JB15LPF-JB

Available Quantity: 69060 Pieces

Reference Price: USD 3.552

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JB SWITCH TACTILE SPST-NO 0.05A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JB15LPF-JB.pdf

Request Quotation for JB15LPF-JB

Company Name

Contact Person

Phone Number

Address

Email

Message

JB15LPF-JB Specifications

Manufacturer Part Number	JB15LPF-JB
Future Part Number	FT-JB15LPF-JB
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JB
JB15LPF-JB Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Square Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	11.20mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	10.00mm x 10.00mm
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Operating Force	176gf
Ingress Protection	-
Features	Process Sealed
Operating Temperature	-25°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JB15LPF-JB Weight	Contact Us
Replacement Part Number	JB15LPF-JB-FT
