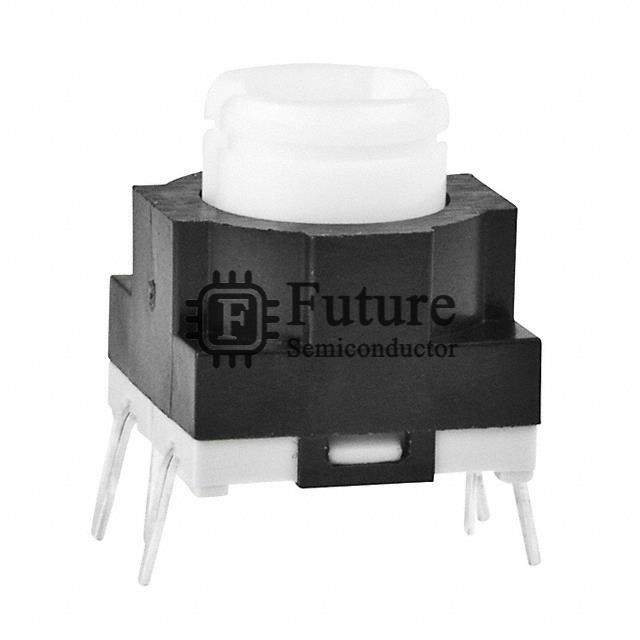

JB15HBPF Image

NKK Switches JB15HBPF

MFG Part Number
JB15HBPF
Available Quantity
83110 Pieces
Reference Price
USD 3.128
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
JB SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Tactile Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
JB15HBPF.pdf
JB15HBPF Image

Request Quotation for JB15HBPF

Company Name
Contact Person
Phone Number
Address
Email
Message

JB15HBPF Specifications

Manufacturer Part Number JB15HBPF
Future Part Number FT-JB15HBPF
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series JB
JB15HBPF Status (Lifecycle) In Stock
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.125A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 10.00mm x 10.00mm
Illumination Illuminated
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1 VDC
Operating Force 265gf
Ingress Protection -
Features Process Sealed
Operating Temperature -25°C ~ 70°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
JB15HBPF Weight Contact Us
Replacement Part Number JB15HBPF-FT
