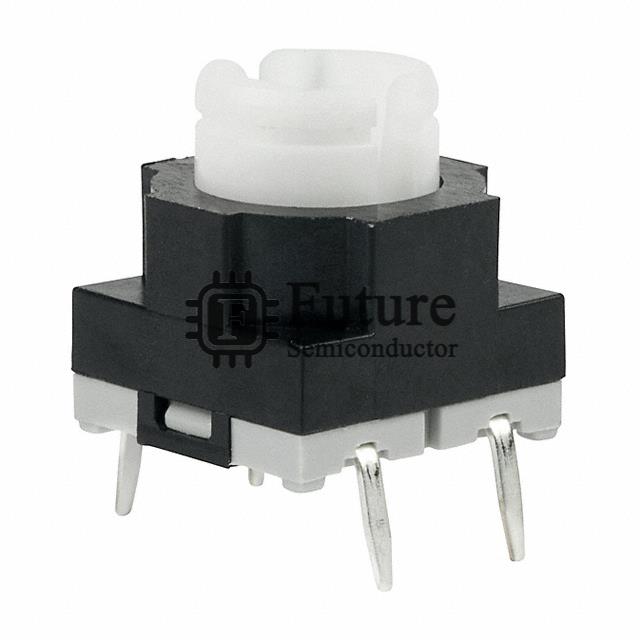

JB15HAP Image

NKK Switches JB15HAP

MFG Part Number
JB15HAP
Available Quantity
83190 Pieces
Reference Price
USD 2.36
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
JB SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Tactile Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
JB15HAP.pdf
JB15HAP Image

Request Quotation for JB15HAP

Company Name
Contact Person
Phone Number
Address
Email
Message

JB15HAP Specifications

Manufacturer Part Number JB15HAP
Future Part Number FT-JB15HAP
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series JB
JB15HAP Status (Lifecycle) In Stock
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.125A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 10.00mm x 10.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 265gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features Process Sealed
Operating Temperature -25°C ~ 70°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
JB15HAP Weight Contact Us
Replacement Part Number JB15HAP-FT
