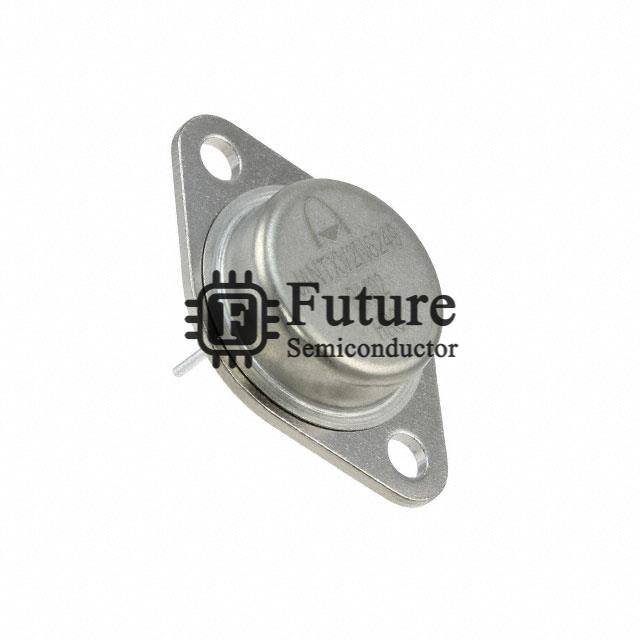

Microsemi Corporation JANTXV2N6249T1

Name: JANTXV2N6249T1
Brand: Microsemi Corporation
SKU: JANTXV2N6249T1
Availability: InStock
Rating: 4.9 (454 reviews)

MFG Part Number: JANTXV2N6249T1

Available Quantity: 86190 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/510 TRANS NPN 200V 10A TO-3

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JANTXV2N6249T1.pdf

Request Quotation for JANTXV2N6249T1

Company Name

Contact Person

Phone Number

Address

Email

Message

JANTXV2N6249T1 Specifications

Manufacturer Part Number	JANTXV2N6249T1
Future Part Number	FT-JANTXV2N6249T1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/510
JANTXV2N6249T1 Status (Lifecycle)	In Stock
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	200V
Vce Saturation (Max) @ Ib, Ic	1.5V @ 1A, 10A
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 10A, 3V
Power - Max	6W
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-254-3, TO-254AA (Straight Leads)
Supplier Device Package	TO-254AA
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JANTXV2N6249T1 Weight	Contact Us
Replacement Part Number	JANTXV2N6249T1-FT
