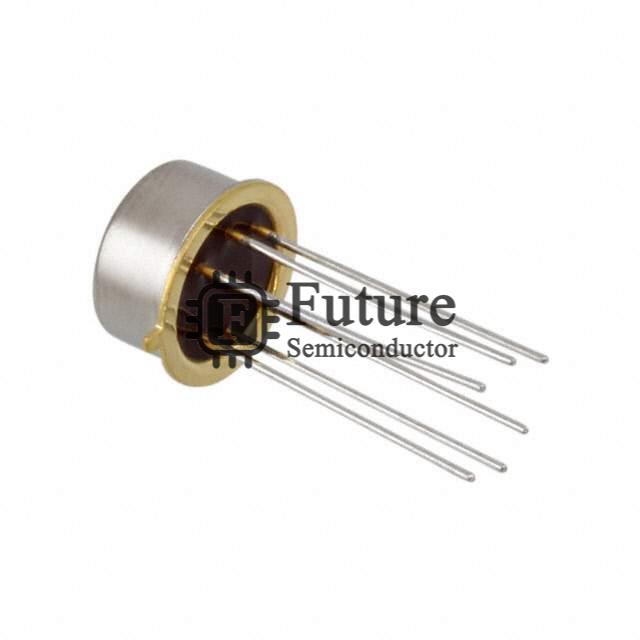

Microsemi Corporation JANTXV2N5794

Name: JANTXV2N5794
Brand: Microsemi Corporation
SKU: JANTXV2N5794
Price: 413.584 USD
Availability: InStock
Rating: 4.8 (782 reviews)

MFG Part Number: JANTXV2N5794

Available Quantity: 66020 Pieces

Reference Price: USD 413.584

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Microsemi Corporation

Brief Description: Military, MIL-PRF-19500/495 TRANS 2NPN 40V 0.6A TO-78

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JANTXV2N5794.pdf

JANTXV2N5794 Specifications

Manufacturer Part Number	JANTXV2N5794
Future Part Number	FT-JANTXV2N5794
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	Military, MIL-PRF-19500/495
JANTXV2N5794 Status (Lifecycle)	In Stock
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	600mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	900mV @ 30mA, 300mA
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	600mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JANTXV2N5794 Weight	Contact Us
Replacement Part Number	JANTXV2N5794-FT
