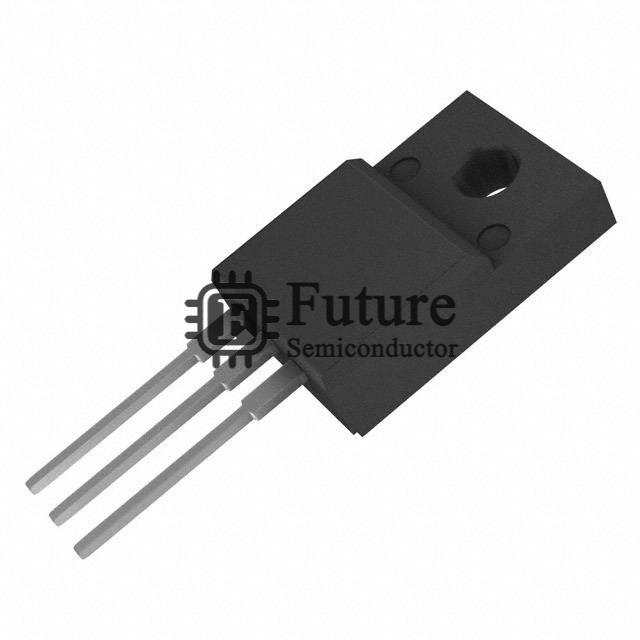

IXYS IXTP14N60PM
- MFG Part Number
- IXTP14N60PM
- Available Quantity
- 58720 Pieces
- Reference Price
- USD 1.92608
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- IXYS
- Brief Description
- PolarHV™ MOSFET N-CH 600V 7A TO-220
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- IXTP14N60PM.pdf
IXTP14N60PM Specifications
| Manufacturer Part Number | IXTP14N60PM |
|---|---|
| Future Part Number | FT-IXTP14N60PM |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PolarHV™ |
| IXTP14N60PM Status (Lifecycle) | In Stock |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 550 mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 36nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2500pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 Isolated Tab |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| IXTP14N60PM Weight | Contact Us |
| Replacement Part Number | IXTP14N60PM-FT |
