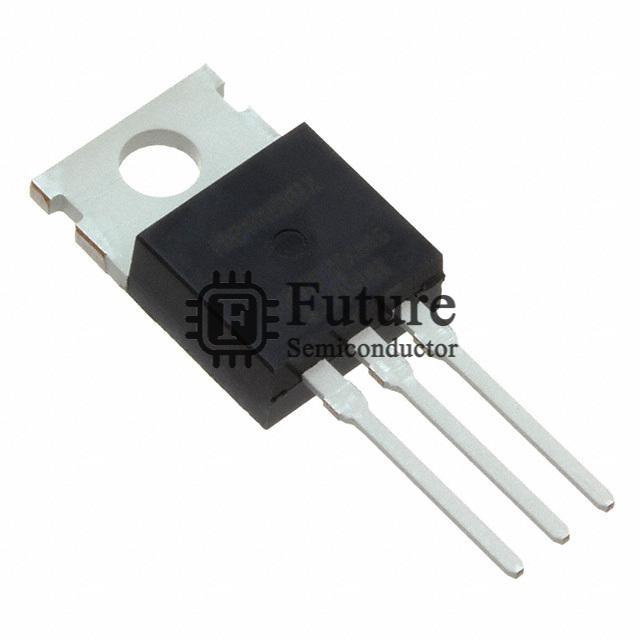

IXYS IXFP14N85X

Name: IXFP14N85X
Brand: IXYS
SKU: IXFP14N85X
Price: 3.872 USD
Availability: InStock
Rating: 5.0 (613 reviews)

MFG Part Number: IXFP14N85X

Available Quantity: 55300 Pieces

Reference Price: USD 3.872

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: IXYS

Brief Description: HiPerFET™ MOSFET N-CH 850V 14A TO220AB

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IXFP14N85X.pdf

IXFP14N85X Specifications

Manufacturer Part Number	IXFP14N85X
Future Part Number	FT-IXFP14N85X
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HiPerFET™
IXFP14N85X Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	850V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	550 mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1043pF @ 25V
FET Feature	-
Power Dissipation (Max)	460W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB (IXFP)
Package / Case	TO-220-3
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IXFP14N85X Weight	Contact Us
Replacement Part Number	IXFP14N85X-FT
