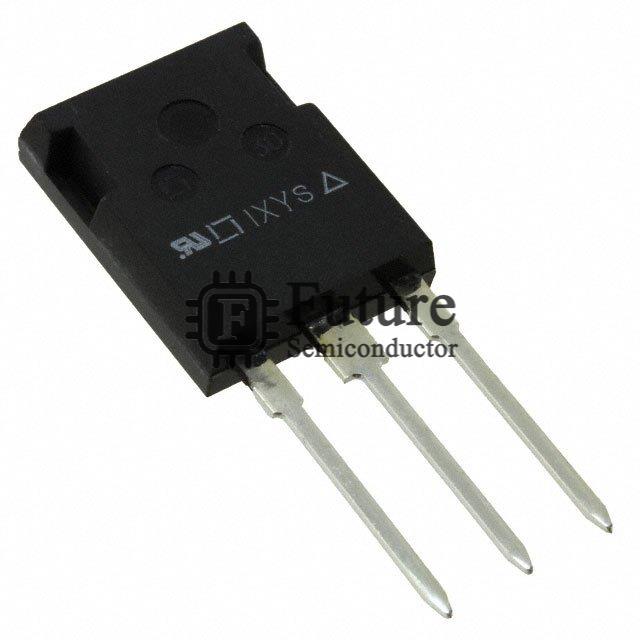

IXYS IXDR30N120D1
- MFG Part Number
- IXDR30N120D1
- Available Quantity
- 93510 Pieces
- Reference Price
- USD 8.0032
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- IXYS
- Brief Description
- - IGBT 1200V 50A 200W ISOPLUS247
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - IGBTs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- IXDR30N120D1.pdf
IXDR30N120D1 Specifications
| Manufacturer Part Number | IXDR30N120D1 |
|---|---|
| Future Part Number | FT-IXDR30N120D1 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| IXDR30N120D1 Status (Lifecycle) | In Stock |
| Part Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 50A |
| Current - Collector Pulsed (Icm) | 60A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 30A |
| Power - Max | 200W |
| Switching Energy | 4.6mJ (on), 3.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 120nC |
| Td (on/off) @ 25°C | - |
| Test Condition | 600V, 30A, 47 Ohm, 15V |
| Reverse Recovery Time (trr) | 40ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | ISOPLUS247™ |
| Supplier Device Package | ISOPLUS247™ |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| IXDR30N120D1 Weight | Contact Us |
| Replacement Part Number | IXDR30N120D1-FT |
