Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / IRL80HS120

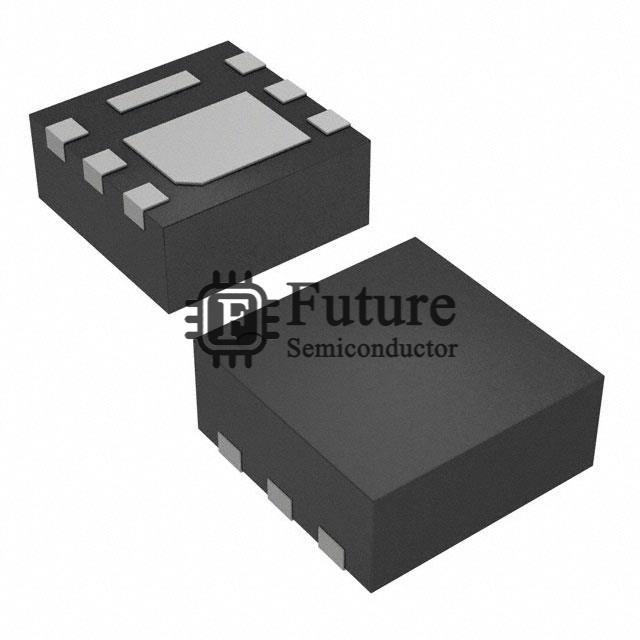

Infineon Technologies IRL80HS120
- MFG Part Number
- IRL80HS120
- Available Quantity
- 89440 Pieces
- Reference Price
- USD 0.36884
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Infineon Technologies
- Brief Description
- - MOSFET N-CH 80V 12.5A 6PQFN
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- IRL80HS120.pdf
IRL80HS120 Specifications
| Manufacturer Part Number | IRL80HS120 |
|---|---|
| Future Part Number | FT-IRL80HS120 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| IRL80HS120 Status (Lifecycle) | In Stock |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 32 mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 10µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 540pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 11.5W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-PQFN (2x2) |
| Package / Case | 6-VDFN Exposed Pad |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| IRL80HS120 Weight | Contact Us |
| Replacement Part Number | IRL80HS120-FT |
