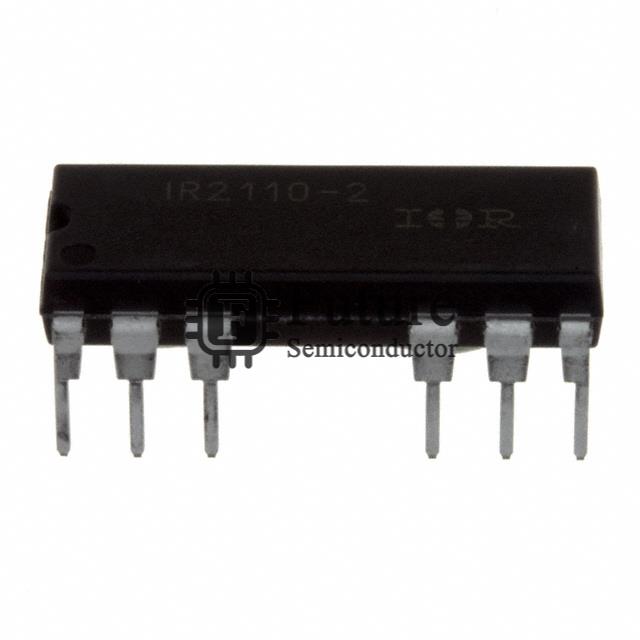

Infineon Technologies IR2110-2

Name: IR2110-2
Brand: Infineon Technologies
SKU: IR2110-2
Availability: InStock
Rating: 4.7 (543 reviews)

MFG Part Number: IR2110-2

Available Quantity: 55420 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Infineon Technologies

Brief Description: - IC DRIVER HIGH/LOW SIDE 14-DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Gate Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IR2110-2.pdf

Request Quotation for IR2110-2

Company Name

Contact Person

Phone Number

Address

Email

Message

IR2110-2 Specifications

Manufacturer Part Number	IR2110-2
Future Part Number	FT-IR2110-2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
IR2110-2 Status (Lifecycle)	In Stock
Part Status	Obsolete
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	3.3V ~ 20V
Logic Voltage - VIL, VIH	6V, 9.5V
Current - Peak Output (Source, Sink)	2A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	500V
Rise / Fall Time (Typ)	25ns, 17ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm), 14 Leads
Supplier Device Package	16-PDIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IR2110-2 Weight	Contact Us
Replacement Part Number	IR2110-2-FT
