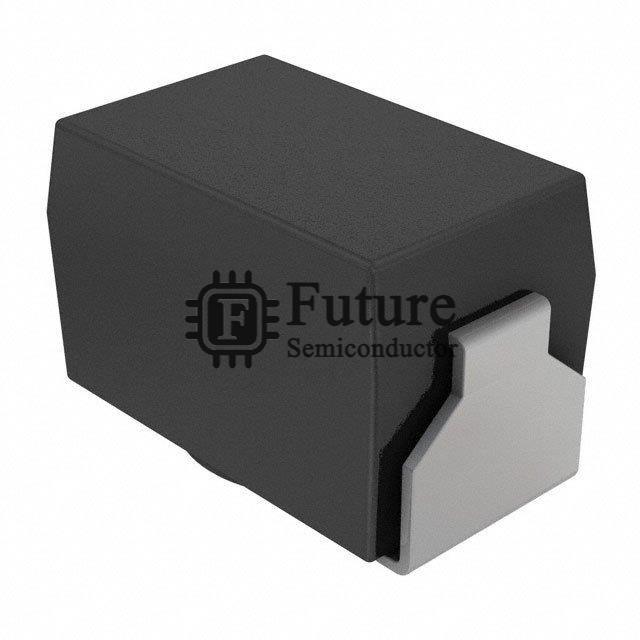

Vishay Dale IMC0805ER1R0J

Name: IMC0805ER1R0J
Brand: Vishay Dale
SKU: IMC0805ER1R0J
Availability: InStock
Rating: 5.0 (703 reviews)

MFG Part Number: IMC0805ER1R0J

Available Quantity: 21780 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Vishay Dale

Brief Description: IMC-0805 FIXED Inductors 1UH 120MA 2.98 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: IMC0805ER1R0J.pdf

Request Quotation for IMC0805ER1R0J

Company Name

Contact Person

Phone Number

Address

Email

Message

IMC0805ER1R0J Specifications

Manufacturer Part Number	IMC0805ER1R0J
Future Part Number	FT-IMC0805ER1R0J
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	IMC-0805
IMC0805ER1R0J Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	1µH
Tolerance	±5%
Current Rating	120mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.98 Ohm Max
Q @ Freq	8 @ 7.96MHz
Frequency - Self Resonant	80MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	7.96MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.061" (1.55mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
IMC0805ER1R0J Weight	Contact Us
Replacement Part Number	IMC0805ER1R0J-FT
