Home / Products / Isolators / Optoisolators - Transistor, Photovoltaic Output / ILQ2-X006

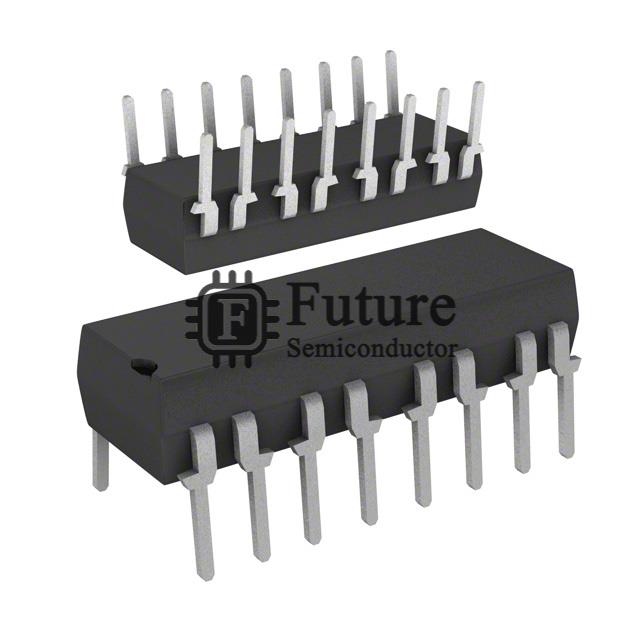

Vishay Semiconductor Opto Division ILQ2-X006
- MFG Part Number
- ILQ2-X006
- Available Quantity
- 97730 Pieces
- Reference Price
- USD 0.898704
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Vishay Semiconductor Opto Division
- Brief Description
- - OPTOISO 5.3KV 4CH TRANS 16DIP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- ILQ2-X006.pdf
ILQ2-X006 Specifications
| Manufacturer Part Number | ILQ2-X006 |
|---|---|
| Future Part Number | FT-ILQ2-X006 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| ILQ2-X006 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Number of Channels | 4 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 500% @ 10mA |
| Turn On / Turn Off Time (Typ) | 1.2µs, 2.3µs |
| Rise / Fall Time (Typ) | 2.6µs, 2.2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| ILQ2-X006 Weight | Contact Us |
| Replacement Part Number | ILQ2-X006-FT |
