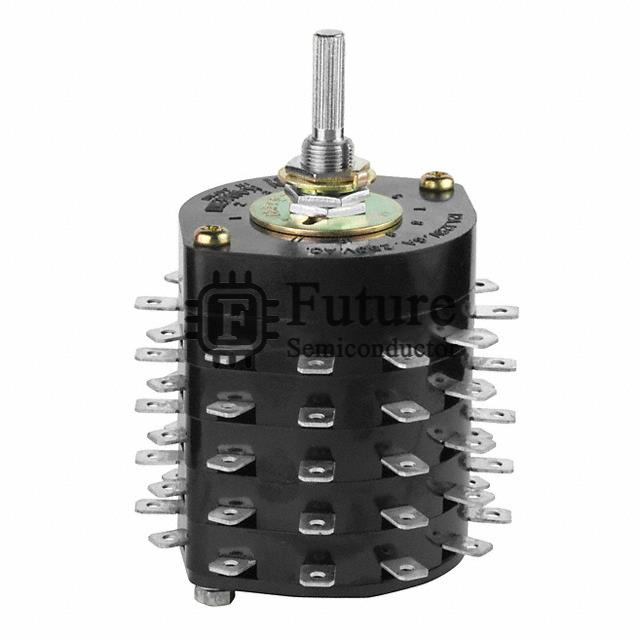

HS16-5S Image

NKK Switches HS16-5S

MFG Part Number
HS16-5S
Available Quantity
80320 Pieces
Reference Price
USD 56.24
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
HS SWITCH ROTARY 2-11POS 12A 125V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Rotary Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
HS16-5S.pdf
HS16-5S Image

Request Quotation for HS16-5S

Company Name
Contact Person
Phone Number
Address
Email
Message

HS16-5S Specifications

Manufacturer Part Number HS16-5S
Future Part Number FT-HS16-5S
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series HS
HS16-5S Status (Lifecycle) In Stock
Part Status Active
Number of Positions 2 ~ 11
Index Stops Adjustable
Number of Decks 5
Number of Poles per Deck 1
Circuit per Deck SP11T
Contact Timing Shorting (MBB)
Current Rating 12A (AC)
Voltage Rating - AC 125V
Voltage Rating - DC -
Actuator Type Knurled (6mm Dia)
Actuator Length 15.00mm
Angle of Throw 30°
Contact Material Phosphor Bronze
Contact Finish -
Mounting Type Panel Mount
Termination Style Solder Lug
Features -
Depth Behind Panel 71.50mm
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
HS16-5S Weight Contact Us
Replacement Part Number HS16-5S-FT
