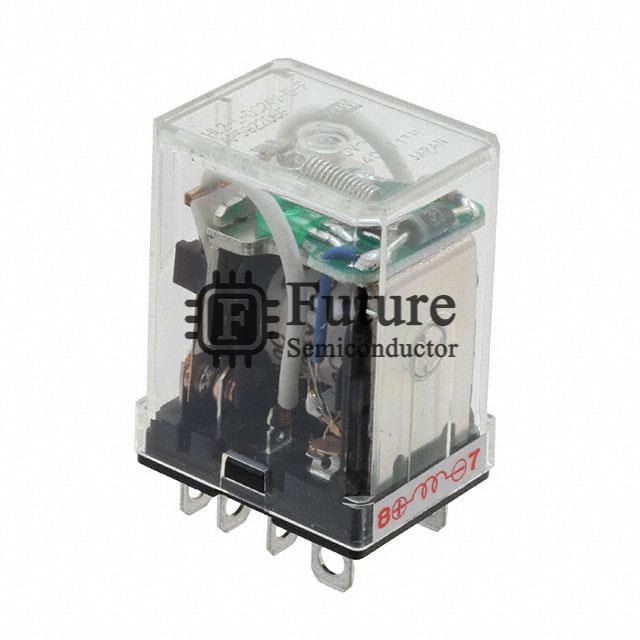

Panasonic Electric Works HL2-L-DC24V-D-F

Name: HL2-L-DC24V-D-F
Brand: Panasonic Electric Works
SKU: HL2-L-DC24V-D-F
Price: 21.968 USD
Availability: InStock
Rating: 4.8 (287 reviews)

MFG Part Number: HL2-L-DC24V-D-F

Available Quantity: 92610 Pieces

Reference Price: USD 21.968

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: HL RELAY GEN PURPOSE DPDT 10A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HL2-L-DC24V-D-F.pdf

Request Quotation for HL2-L-DC24V-D-F

Company Name

Contact Person

Phone Number

Address

Email

Message

HL2-L-DC24V-D-F Specifications

Manufacturer Part Number	HL2-L-DC24V-D-F
Future Part Number	FT-HL2-L-DC24V-D-F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HL
HL2-L-DC24V-D-F Status (Lifecycle)	In Stock
Part Status	Obsolete
Mounting Type	Socketable
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	10A
Switching Voltage	125VAC - Nom
Coil Current	37.0mA
Coil Type	Non Latching
Features	Diode, LED Indicator
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	25ms
Release Time	25ms
Operating Temperature	-50°C ~ 60°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HL2-L-DC24V-D-F Weight	Contact Us
Replacement Part Number	HL2-L-DC24V-D-F-FT
