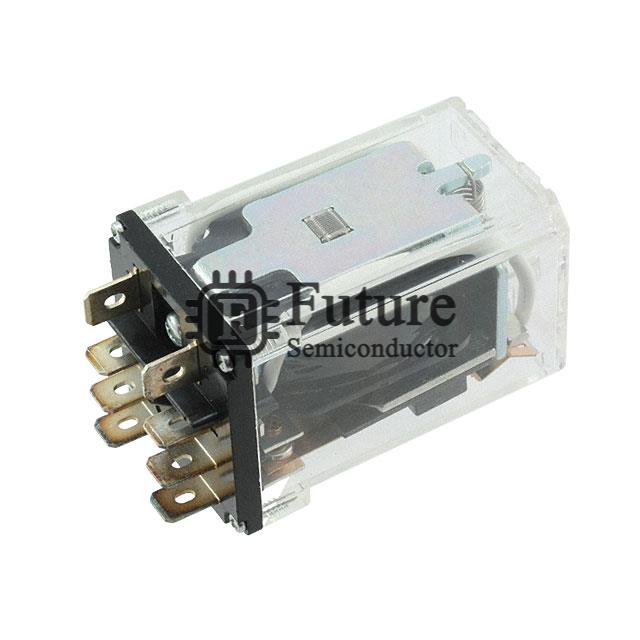

Panasonic Electric Works HG2-AC115V-F

Name: HG2-AC115V-F
Brand: Panasonic Electric Works
SKU: HG2-AC115V-F
Availability: InStock
Rating: 4.8 (681 reviews)

MFG Part Number: HG2-AC115V-F

Available Quantity: 37130 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: HG RELAY GEN PURPOSE DPDT 20A 115V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HG2-AC115V-F.pdf

Request Quotation for HG2-AC115V-F

Company Name

Contact Person

Phone Number

Address

Email

Message

HG2-AC115V-F Specifications

Manufacturer Part Number	HG2-AC115V-F
Future Part Number	FT-HG2-AC115V-F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HG
HG2-AC115V-F Status (Lifecycle)	In Stock
Part Status	Obsolete
Mounting Type	Socketable
Coil Voltage	115VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	20A
Switching Voltage	250VAC - Nom
Coil Current	31.3mA
Coil Type	Non Latching
Features	-
Termination Style	Plug In, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage	92 VAC
Must Release Voltage	34.5 VAC
Operate Time	30ms
Release Time	30ms
Operating Temperature	-50°C ~ 40°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HG2-AC115V-F Weight	Contact Us
Replacement Part Number	HG2-AC115V-F-FT
