Home / Products / Relays / Power Relays, Over 2 Amps / HE2AN-SW-DC48V

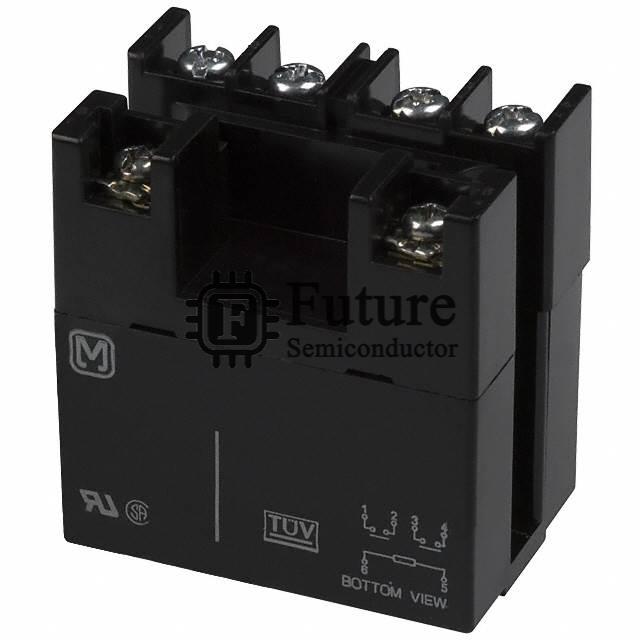

Panasonic Electric Works HE2AN-SW-DC48V
- MFG Part Number
- HE2AN-SW-DC48V
- Available Quantity
- 25720 Pieces
- Reference Price
- USD 21.0064
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Panasonic Electric Works
- Brief Description
- HE RELAY GEN PURPOSE DPST 25A 48V
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Power Relays, Over 2 Amps
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- HE2AN-SW-DC48V.pdf
HE2AN-SW-DC48V Specifications
| Manufacturer Part Number | HE2AN-SW-DC48V |
|---|---|
| Future Part Number | FT-HE2AN-SW-DC48V |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | HE |
| HE2AN-SW-DC48V Status (Lifecycle) | In Stock |
| Part Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 48VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 25A |
| Switching Voltage | 277VAC, 30VDC - Max |
| Coil Current | 40.0mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 33.6 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 30ms |
| Release Time | 10ms |
| Operating Temperature | -50°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| HE2AN-SW-DC48V Weight | Contact Us |
| Replacement Part Number | HE2AN-SW-DC48V-FT |
