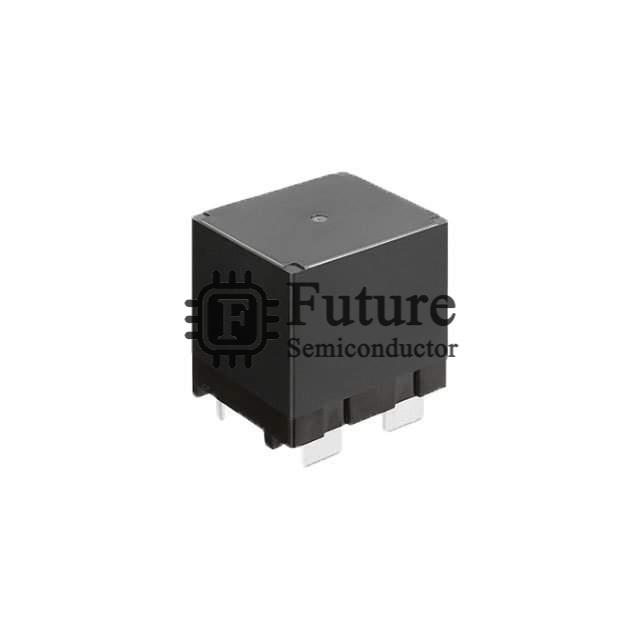

Panasonic Electric Works HE1AN-W-DC24V-Y6

Name: HE1AN-W-DC24V-Y6
Brand: Panasonic Electric Works
SKU: HE1AN-W-DC24V-Y6
Price: 26.48 USD
Availability: InStock
Rating: 4.7 (417 reviews)

MFG Part Number: HE1AN-W-DC24V-Y6

Available Quantity: 58580 Pieces

Reference Price: USD 26.48

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: HE-PV RELAY GEN PURPOSE SPST 90A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HE1AN-W-DC24V-Y6.pdf

Request Quotation for HE1AN-W-DC24V-Y6

Company Name

Contact Person

Phone Number

Address

Email

Message

HE1AN-W-DC24V-Y6 Specifications

Manufacturer Part Number	HE1AN-W-DC24V-Y6
Future Part Number	FT-HE1AN-W-DC24V-Y6
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HE-PV
HE1AN-W-DC24V-Y6 Status (Lifecycle)	In Stock
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	24VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	90A
Switching Voltage	277VAC - Max
Coil Current	80.0mA
Coil Type	Non Latching
Features	-
Termination Style	PC Pin
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	30ms
Release Time	10ms
Operating Temperature	-50°C ~ 55°C
Contact Material	Silver Nickel (AgNi)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HE1AN-W-DC24V-Y6 Weight	Contact Us
Replacement Part Number	HE1AN-W-DC24V-Y6-FT
