Home / Products / Relays / Power Relays, Over 2 Amps / HE1AN-DC48V

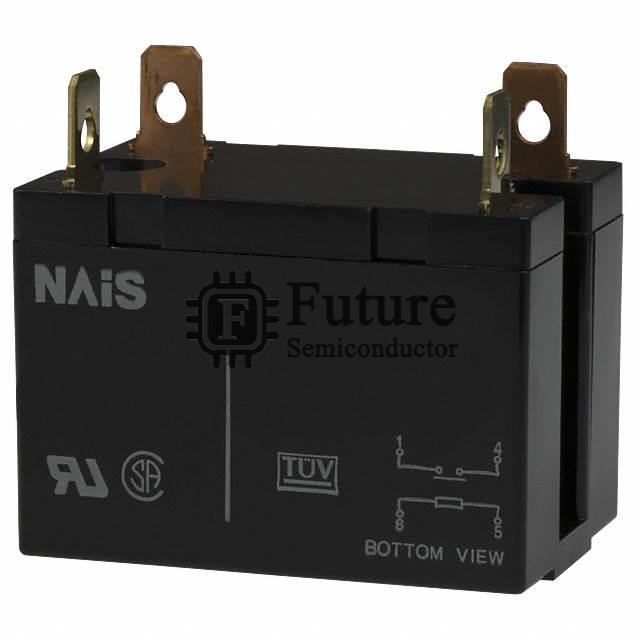

HE1AN-DC48V Image

Panasonic Electric Works HE1AN-DC48V

MFG Part Number
HE1AN-DC48V
Available Quantity
59700 Pieces
Reference Price
USD 17.208
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Panasonic Electric Works
Brief Description
HE RELAY GEN PURPOSE SPST 30A 48V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Power Relays, Over 2 Amps
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
HE1AN-DC48V.pdf
HE1AN-DC48V Image

Request Quotation for HE1AN-DC48V

Company Name
Contact Person
Phone Number
Address
Email
Message

HE1AN-DC48V Specifications

Manufacturer Part Number HE1AN-DC48V
Future Part Number FT-HE1AN-DC48V
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series HE
HE1AN-DC48V Status (Lifecycle) In Stock
Part Status Active
Mounting Type Chassis Mount
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 40.0mA
Coil Type Non Latching
Features -
Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
Must Operate Voltage 33.6 VDC
Must Release Voltage 4.8 VDC
Operate Time 30ms
Release Time 10ms
Operating Temperature -50°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
HE1AN-DC48V Weight Contact Us
Replacement Part Number HE1AN-DC48V-FT
