Home / Products / Inductors, Coils, Chokes / Fixed Inductors / HCM1305-2R2-R

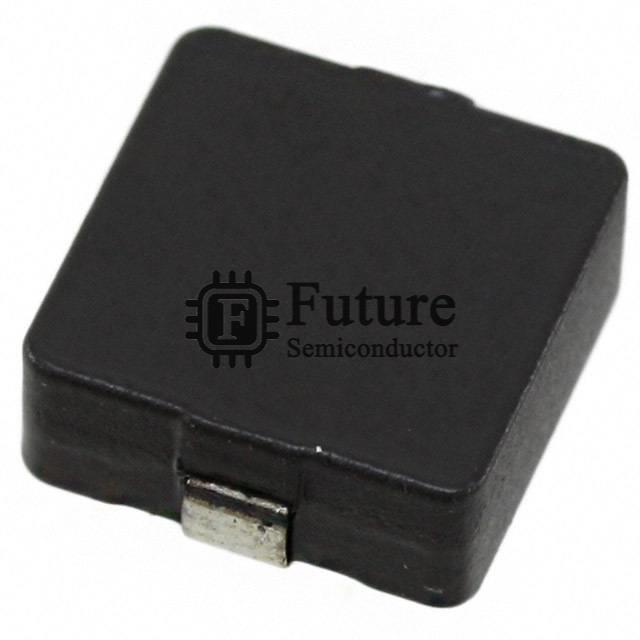

Eaton - Electronics Division HCM1305-2R2-R
- MFG Part Number
- HCM1305-2R2-R
- Available Quantity
- 98690 Pieces
- Reference Price
- USD 2.0196
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Eaton - Electronics Division
- Brief Description
- HCM1305 FIXED Inductors 2.2UH 20A 5.29 MOHM
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- HCM1305-2R2-R.pdf
HCM1305-2R2-R Specifications
| Manufacturer Part Number | HCM1305-2R2-R |
|---|---|
| Future Part Number | FT-HCM1305-2R2-R |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | HCM1305 |
| HCM1305-2R2-R Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 20A |
| Current - Saturation | 32A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.29 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.524" L x 0.480" W (13.30mm x 12.20mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| HCM1305-2R2-R Weight | Contact Us |
| Replacement Part Number | HCM1305-2R2-R-FT |
