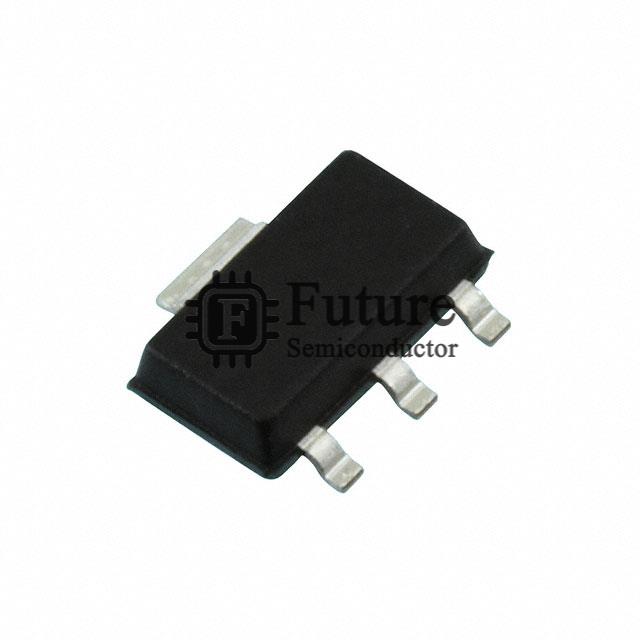

TDK-Micronas GmbH HAL506SF-A

Name: HAL506SF-A
Brand: TDK-Micronas GmbH
SKU: HAL506SF-A
Price: 0.3388 USD
Availability: InStock
Rating: 4.7 (557 reviews)

MFG Part Number: HAL506SF-A

Available Quantity: 98030 Pieces

Reference Price: USD 0.3388

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK-Micronas GmbH

Brief Description: HAL® 5xy MAGNETIC SWITCH UNIPOL SOT89B-1

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Magnetic Sensors - Switches (Solid State)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HAL506SF-A.pdf

Request Quotation for HAL506SF-A

Company Name

Contact Person

Phone Number

Address

Email

Message

HAL506SF-A Specifications

Manufacturer Part Number	HAL506SF-A
Future Part Number	FT-HAL506SF-A
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HAL® 5xy
HAL506SF-A Status (Lifecycle)	In Stock
Part Status	Last Time Buy
Function	Unipolar Switch
Technology	Hall Effect
Polarization	South Pole
Sensing Range	7.2mT Trip, 2mT Release
Test Condition	25°C
Voltage - Supply	3.8V ~ 24V
Current - Supply (Max)	4.2mA
Current - Output (Max)	20mA
Output Type	Open Drain
Features	Temperature Compensated
Operating Temperature	-40°C ~ 170°C (TJ)
Package / Case	TO-243AA, Variant
Supplier Device Package	SOT-89B-1
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HAL506SF-A Weight	Contact Us
Replacement Part Number	HAL506SF-A-FT
