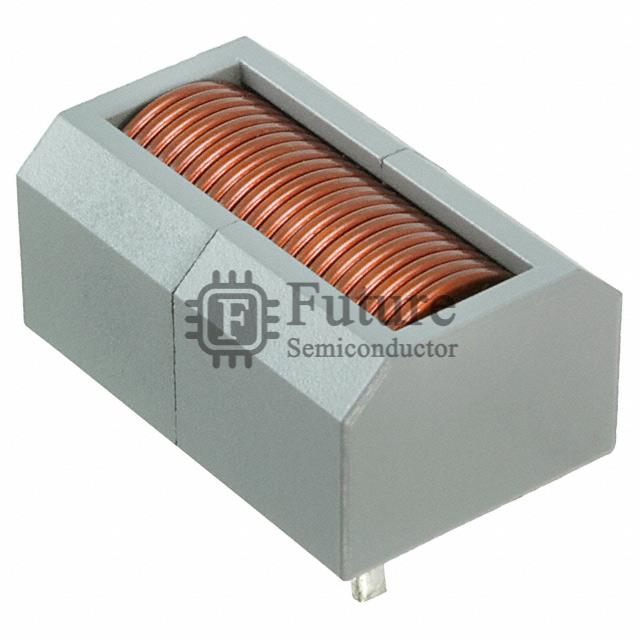

TT Electronics/BI Magnetics HA55L-3623400LF

Name: HA55L-3623400LF
Brand: TT Electronics/BI Magnetics
SKU: HA55L-3623400LF
Availability: InStock
Rating: 4.6 (542 reviews)

MFG Part Number: HA55L-3623400LF

Available Quantity: 81310 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TT Electronics/BI Magnetics

Brief Description: HA55 FIXED Inductors 40UH 26A 6.2 MOHM TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HA55L-3623400LF.pdf

Request Quotation for HA55L-3623400LF

Company Name

Contact Person

Phone Number

Address

Email

Message

HA55L-3623400LF Specifications

Manufacturer Part Number	HA55L-3623400LF
Future Part Number	FT-HA55L-3623400LF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	HA55
HA55L-3623400LF Status (Lifecycle)	In Stock
Part Status	Discontinued at Future Semiconductor
Type	Wirewound
Material - Core	-
Inductance	40µH
Tolerance	-
Current Rating	26A
Current - Saturation	20A
Shielding	Shielded
DC Resistance (DCR)	6.2 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 155°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Through Hole
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	1.417" L x 0.906" W (36.00mm x 23.00mm)
Height - Seated (Max)	0.669" (17.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HA55L-3623400LF Weight	Contact Us
Replacement Part Number	HA55L-3623400LF-FT
