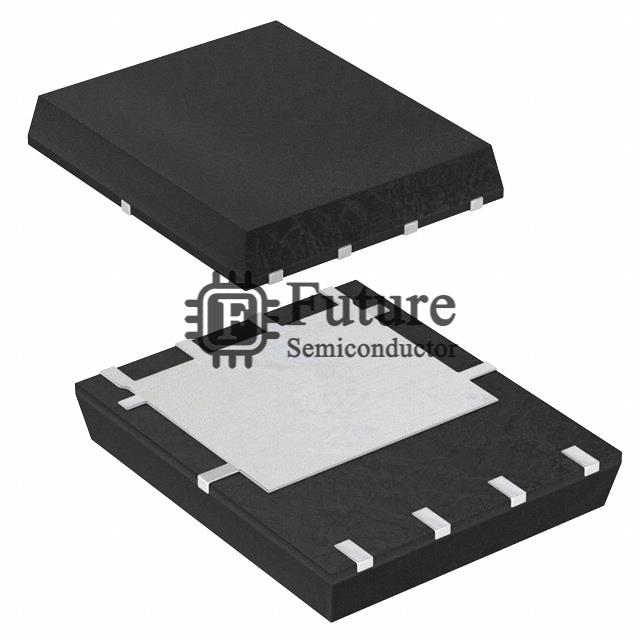

Sanken GKI06109

Name: GKI06109
Brand: Sanken
SKU: GKI06109
Price: 0.2576 USD
Availability: InStock
Rating: 4.5 (755 reviews)

MFG Part Number: GKI06109

Available Quantity: 29980 Pieces

Reference Price: USD 0.2576

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Sanken

Brief Description: - MOSFET N-CH 60V 9A 8DFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: GKI06109.pdf

GKI06109 Specifications

Manufacturer Part Number	GKI06109
Future Part Number	FT-GKI06109
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
GKI06109 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.9 mOhm @ 23.6A, 10V
Vgs(th) (Max) @ Id	2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	38.6nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2520pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 59W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Package / Case	8-PowerTDFN
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
GKI06109 Weight	Contact Us
Replacement Part Number	GKI06109-FT
