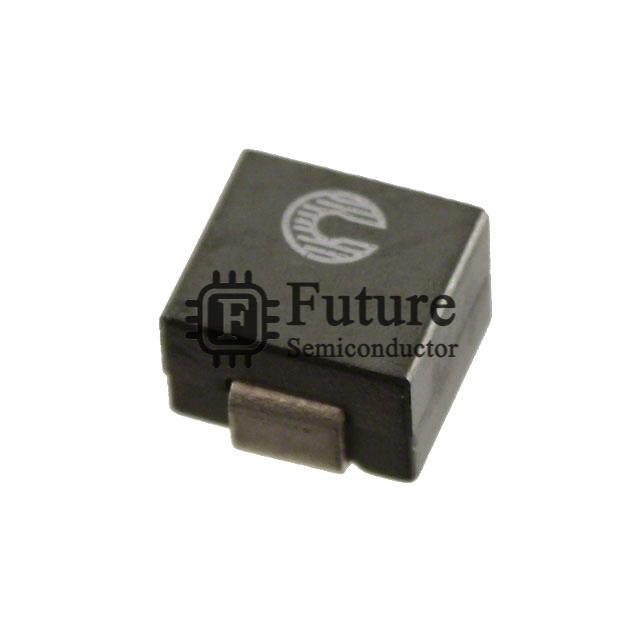

Eaton - Electronics Division FP0805R1-R20-R
- MFG Part Number
- FP0805R1-R20-R
- Available Quantity
- 51020 Pieces
- Reference Price
- USD 0.68096
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Eaton - Electronics Division
- Brief Description
- FLAT-PAC, FP0805 FIXED Inductors 200NH 65A 0.17 MOHM
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- FP0805R1-R20-R.pdf
FP0805R1-R20-R Specifications
| Manufacturer Part Number | FP0805R1-R20-R |
|---|---|
| Future Part Number | FT-FP0805R1-R20-R |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | FLAT-PAC, FP0805 |
| FP0805R1-R20-R Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 200nH |
| Tolerance | ±10% |
| Current Rating | 65A |
| Current - Saturation | 20A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.17 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.300" L x 0.295" W (7.62mm x 7.49mm) |
| Height - Seated (Max) | 0.195" (4.96mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| FP0805R1-R20-R Weight | Contact Us |
| Replacement Part Number | FP0805R1-R20-R-FT |
