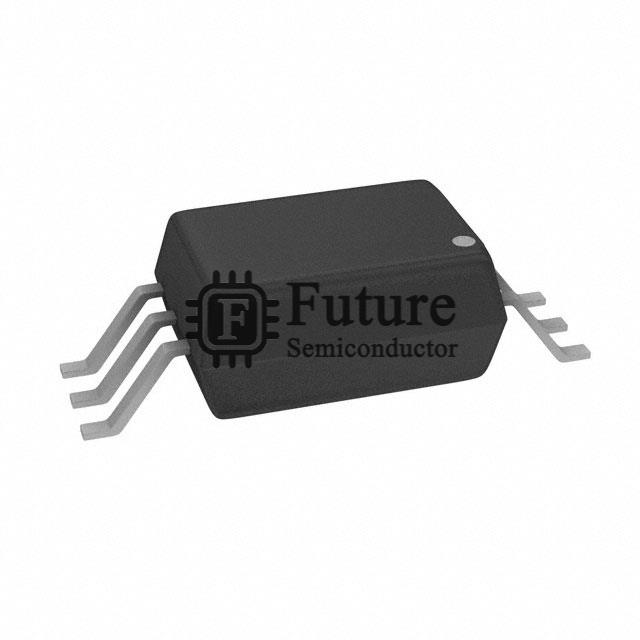

ON Semiconductor FOD8163T

Name: FOD8163T
Brand: ON Semiconductor
SKU: FOD8163T
Price: 0.784904 USD
Availability: InStock
Rating: 4.9 (154 reviews)

MFG Part Number: FOD8163T

Available Quantity: 39620 Pieces

Reference Price: USD 0.784904

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 5KV OPEN COLLECTOR 6SOP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Logic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FOD8163T.pdf

FOD8163T Specifications

Manufacturer Part Number	FOD8163T
Future Part Number	FT-FOD8163T
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
FOD8163T Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50mA
Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	90ns, 80ns
Rise / Fall Time (Typ)	20ns, 10ns
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package	6-SOP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FOD8163T Weight	Contact Us
Replacement Part Number	FOD8163T-FT
