Home / Products / Isolators / Isolators - Gate Drivers / FOD3180TV

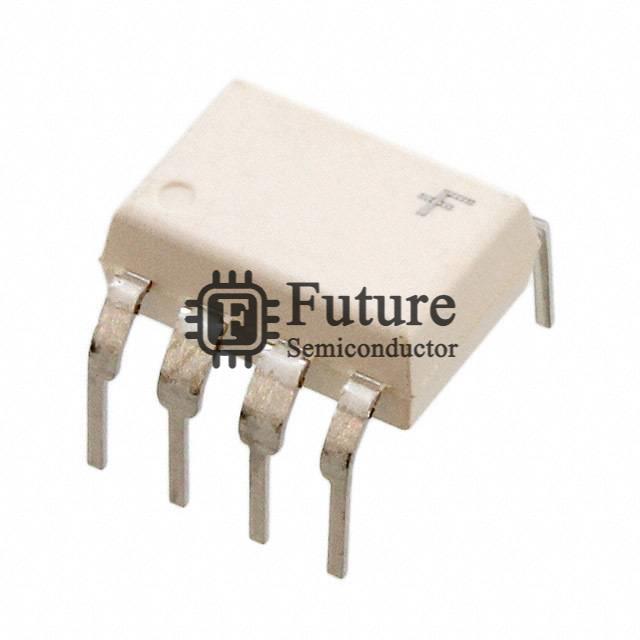

ON Semiconductor FOD3180TV
- MFG Part Number
- FOD3180TV
- Available Quantity
- 87550 Pieces
- Reference Price
- USD 1.808
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- - OPTOISO 5KV 1CH GATE DRIVER 8DIP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Isolators - Gate Drivers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- FOD3180TV.pdf
FOD3180TV Specifications
| Manufacturer Part Number | FOD3180TV |
|---|---|
| Future Part Number | FT-FOD3180TV |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| FOD3180TV Status (Lifecycle) | In Stock |
| Part Status | Active |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 75ns, 55ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 10V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.400", 10.16mm) |
| Supplier Device Package | 8-DIP |
| Approvals | cUL, UL, VDE |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| FOD3180TV Weight | Contact Us |
| Replacement Part Number | FOD3180TV-FT |
