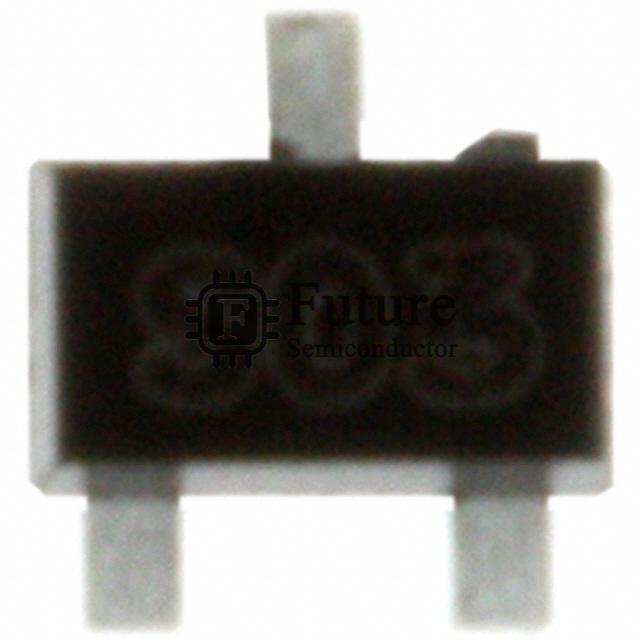

ON Semiconductor FJY3003R

Name: FJY3003R
Brand: ON Semiconductor
SKU: FJY3003R
Availability: InStock
Rating: 4.7 (181 reviews)

MFG Part Number: FJY3003R

Available Quantity: 91180 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - TRANS PREBIAS NPN 200MW SOT523F

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - Single, Pre-Biased

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FJY3003R.pdf

Request Quotation for FJY3003R

Company Name

Contact Person

Phone Number

Address

Email

Message

FJY3003R Specifications

Manufacturer Part Number	FJY3003R
Future Part Number	FT-FJY3003R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
FJY3003R Status (Lifecycle)	In Stock
Part Status	Obsolete
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	22 kOhms
Resistor - Emitter Base (R2)	22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	56 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	100nA (ICBO)
Frequency - Transition	250MHz
Power - Max	200mW
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	SOT-523F
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FJY3003R Weight	Contact Us
Replacement Part Number	FJY3003R-FT
