Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / FJ4B01100L1

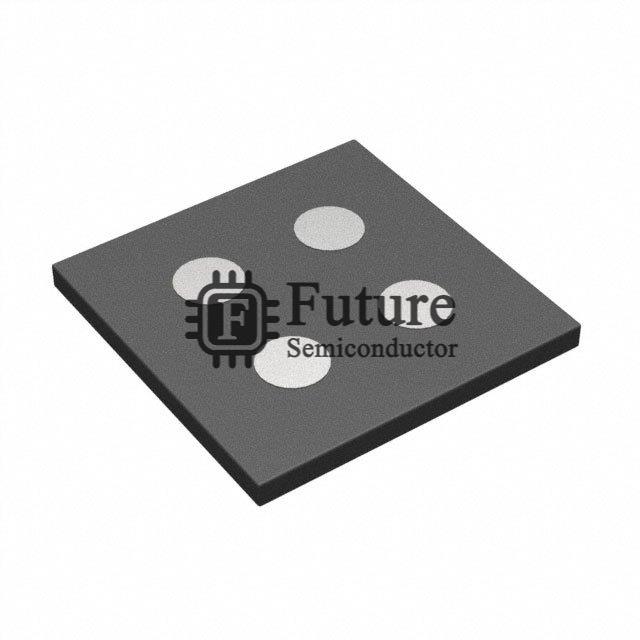

FJ4B01100L1 Image

Panasonic Electronic Components FJ4B01100L1

MFG Part Number
FJ4B01100L1
Available Quantity
97990 Pieces
Reference Price
USD 0.1632
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Panasonic Electronic Components
Brief Description
- CSP SINGLE P-CHANNEL MOSFET
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Transistors - FETs, MOSFETs - Single
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
FJ4B01100L1.pdf
FJ4B01100L1 Image

Request Quotation for FJ4B01100L1

Company Name
Contact Person
Phone Number
Address
Email
Message

FJ4B01100L1 Specifications

Manufacturer Part Number FJ4B01100L1
Future Part Number FT-FJ4B01100L1
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series -
FJ4B01100L1 Status (Lifecycle) In Stock
Part Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 12V
Current - Continuous Drain (Id) @ 25°C 2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 74 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id 1V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs 7nC @ 4.5V
Vgs (Max) ±8V
Input Capacitance (Ciss) (Max) @ Vds 459pF @ 10V
FET Feature -
Power Dissipation (Max) 360mW (Ta)
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package XLGA004-W-0808-RA01
Package / Case 4-XFLGA, CSP
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
FJ4B01100L1 Weight Contact Us
Replacement Part Number FJ4B01100L1-FT
