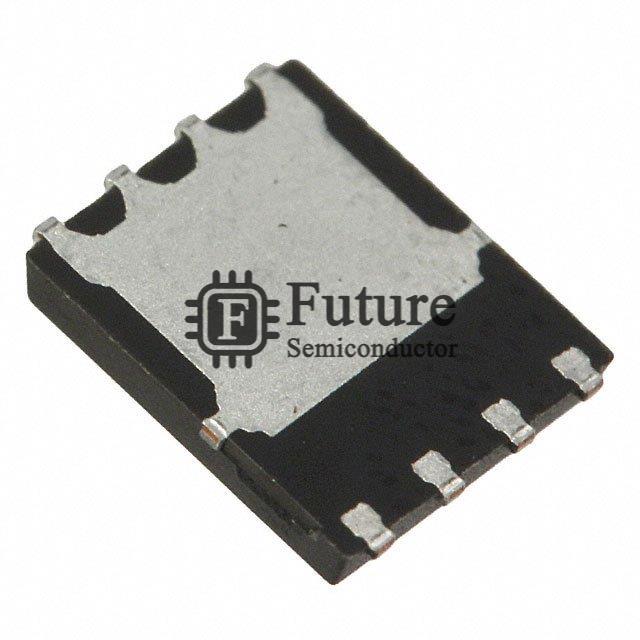

ON Semiconductor FDMS7606

Name: FDMS7606
Brand: ON Semiconductor
SKU: FDMS7606
Availability: InStock
Rating: 4.7 (161 reviews)

MFG Part Number: FDMS7606

Available Quantity: 21980 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: PowerTrench® MOSFET 2N-CH 30V 11.5A/12A PWR56

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: FDMS7606.pdf

FDMS7606 Specifications

Manufacturer Part Number	FDMS7606
Future Part Number	FT-FDMS7606
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PowerTrench®
FDMS7606 Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	11.5A, 12A
Rds On (Max) @ Id, Vgs	11.4 mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 15V
Power - Max	1W
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	Power56
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
FDMS7606 Weight	Contact Us
Replacement Part Number	FDMS7606-FT
