Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / FDB016N04AL7

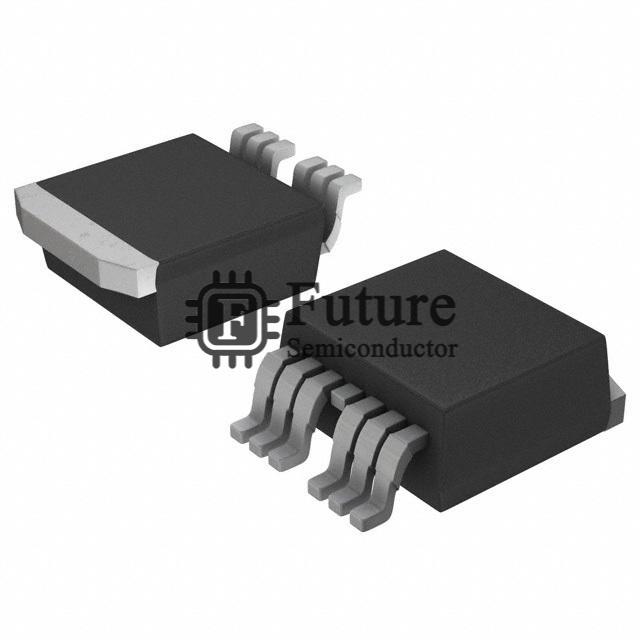

ON Semiconductor FDB016N04AL7
- MFG Part Number
- FDB016N04AL7
- Available Quantity
- 62700 Pieces
- Reference Price
- USD 2.112
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- PowerTrench® MOSFET N-CH 40V 160A D2PAK-7
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- FDB016N04AL7.pdf
FDB016N04AL7 Specifications
| Manufacturer Part Number | FDB016N04AL7 |
|---|---|
| Future Part Number | FT-FDB016N04AL7 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PowerTrench® |
| FDB016N04AL7 Status (Lifecycle) | In Stock |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 167nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11600pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 283W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D²PAK (TO-263) |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| FDB016N04AL7 Weight | Contact Us |
| Replacement Part Number | FDB016N04AL7-FT |
