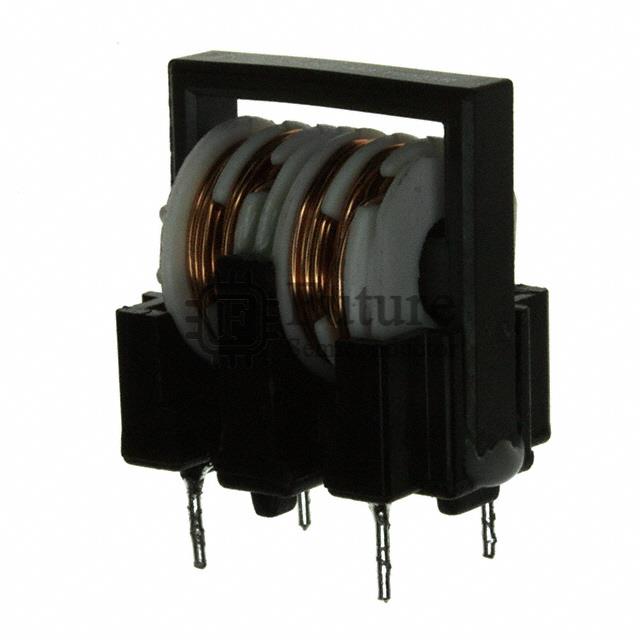

Schaffner EMC Inc. EV20-1.5-02-1M8

Name: EV20-1.5-02-1M8
Brand: Schaffner EMC Inc.
SKU: EV20-1.5-02-1M8
Price: 1.752 USD
Availability: InStock
Rating: 4.7 (236 reviews)

MFG Part Number: EV20-1.5-02-1M8

Available Quantity: 62200 Pieces

Reference Price: USD 1.752

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Schaffner EMC Inc.

Brief Description: EV CMC 1.8MH 1.5A 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: EV20-1.5-02-1M8.pdf

Request Quotation for EV20-1.5-02-1M8

Company Name

Contact Person

Phone Number

Address

Email

Message

EV20-1.5-02-1M8 Specifications

Manufacturer Part Number	EV20-1.5-02-1M8
Future Part Number	FT-EV20-1.5-02-1M8
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	EV
EV20-1.5-02-1M8 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	1.8mH @ 10kHz
Current Rating (Max)	1.5A
DC Resistance (DCR) (Max)	72 mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max)	1.024" (26.00mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
EV20-1.5-02-1M8 Weight	Contact Us
Replacement Part Number	EV20-1.5-02-1M8-FT
